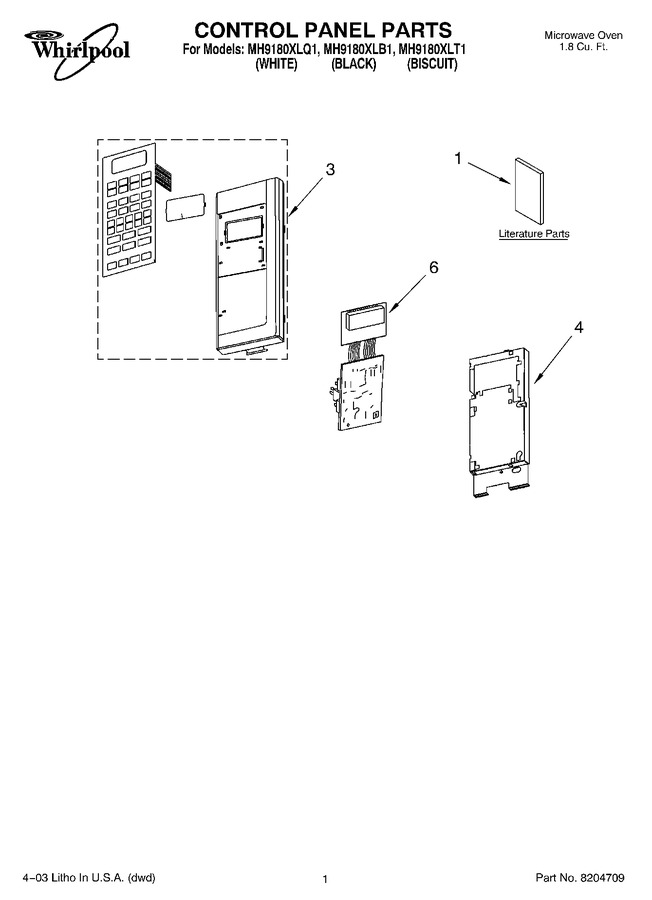

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8183958 | Literature Parts (u & C Guide) |
|
- | |||||
| 1 | LIT8184634 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8184059 | Literature Parts (instructn, Install) |
|
- | |||||
| 1 | LIT8183963 | Literature Parts (cook Guide Label) |
|
- | |||||
| 3 | 8184249 | Panel Asy, Control Includes Lens And Membrane Switch (white) |
|
- | |||||
| 3 | 8184251 | Panel Asy, Control Includes Lens And Membrane Switch (black) |
|
- | |||||
| 3 | 8184250 | Panel Asy, Control Includes Lens And Membrane Switch (biscuit) |
|
- | |||||
| 4 | 8184920 | Bracket, Control |
|
- | |||||
| 6 | 8184252 | Microcomputer |
|
- |
