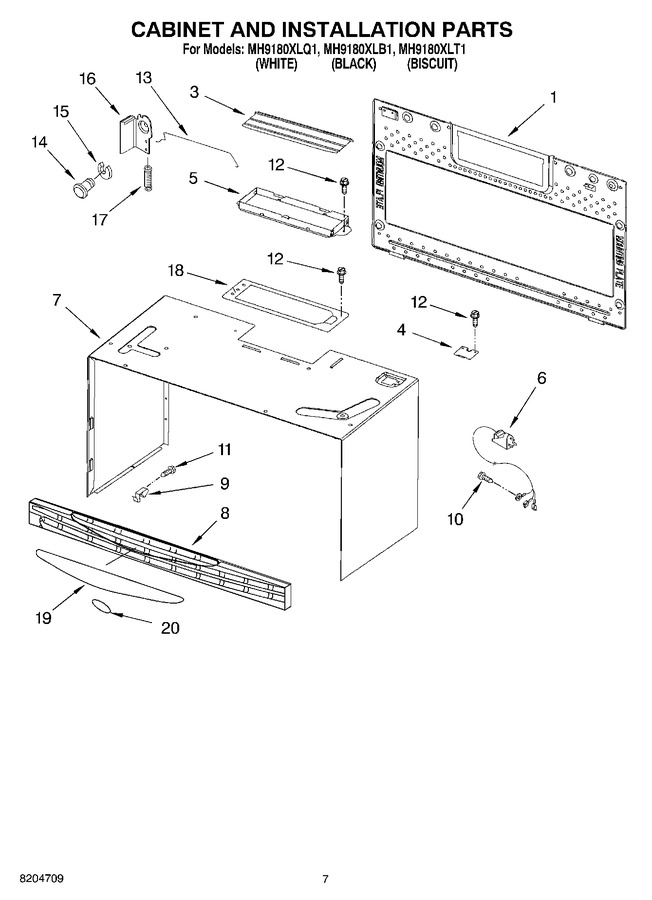

06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8184106		Plate, Mounting		Appelez-nous	-
3	W10843943		Door, Damper   (Replaces: 4393713)			Immediately	$ 65.74
4	8184897		Lid, Power Cord		Appelez-nous	-
5	W10843943		Frame, Damper   (Replaces: 4393715)			Immediately	$ 65.74
6	8184898		Cord, Power		Appelez-nous	-
7	8184901		Case, Outer (biscuit)		Appelez-nous	-
7	8184899		Case, Outer (white)		Appelez-nous	-
7	8184900		Case, Outer (black)		Appelez-nous	-
8	8184672		Grille, Vent (biscuit)		Appelez-nous	-
8	8184673		Grille, Vent (black)		Appelez-nous	-
8	8184671		Grille, Vent (white)		Appelez-nous	-
9	W10615742		Clip, Grille   (Replaces: 8184190)				$ 7.38
10	4393836		Screw		Appelez-nous	-
11	8169475		Screw				$ 6.64
12	4393472		Screw		Appelez-nous	-
13	8184135		Rod		Appelez-nous	-
14	8169319		Latch, Pivot		Appelez-nous	-
15	8169320		E-ring		Appelez-nous	-
16	8169321		Catch		Appelez-nous	-
17	8169374		Spring		Appelez-nous	-
18	8169697		Plate, Damper		Appelez-nous	-
19	8185075		Plate, Grille (biscuit)		Appelez-nous	-
19	8185073		Plate, Grille (white)		Appelez-nous	-
19	8185074		Plate, Grille (black)		Appelez-nous	-
20	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 10.07
20	8204710		Plate, Name		Appelez-nous	-
20	N/A		Miscellaneous		Appelez-nous	-
20	8169659		Installation, Hardware		Appelez-nous	-
20	8183985		Template, Upper		Appelez-nous	-
20	8183987		Template, Wall		Appelez-nous	-
