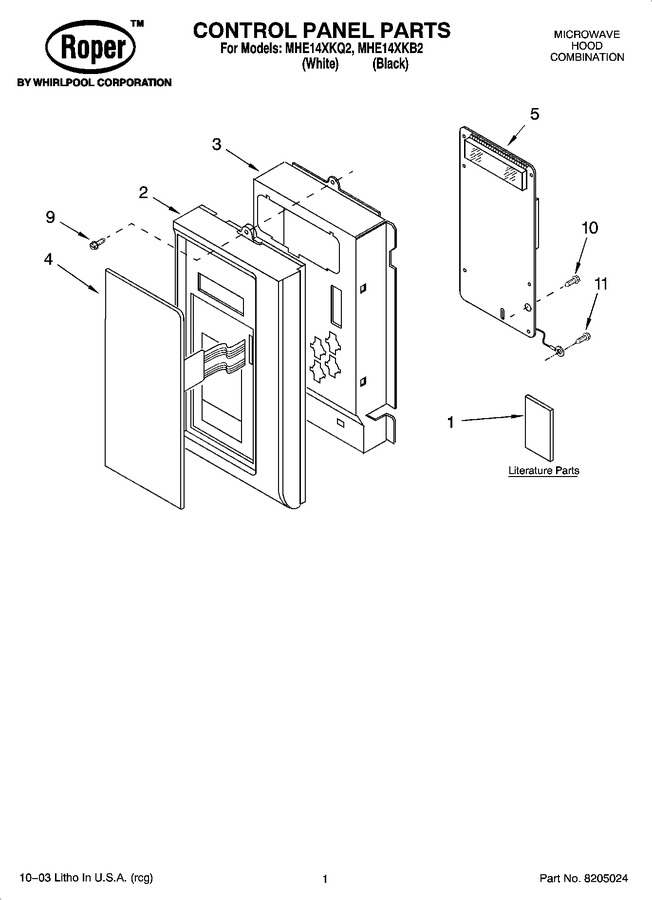

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8183991 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8183894 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8183915 | Literature Parts (cooking Guide) |
|
- | |||||
| 1 | LIT8183914 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 8184334 | Control Panel (white) |
|
- | |||||
| 2 | 8184330 | Control Panel (black) |
|
- | |||||
| 3 | 8184653 | Bracket, Control |
|
- | |||||
| 4 | 8184388 | Key Membrane (white) |
|
- | |||||
| 4 | 8184387 | Key Membrane (black) |
|
- | |||||
| 5 | 8184654 | Microcomputer |
|
- | |||||
| 9 | 4358762 | Screw (black) |
|
$ 7.10 | |||||
| 9 | 4358381 | Screw (white) |
|
- | |||||
| 10 | 4358883 | Screw |
|
- | |||||
| 11 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 |
