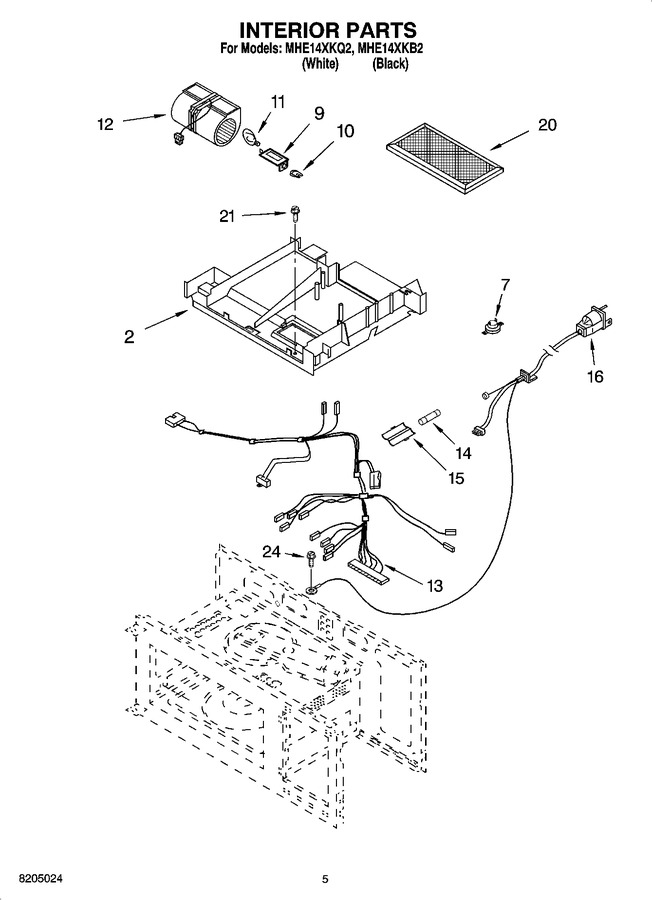

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8184045 | Air Duct |
|
- | |||||
| 7 | 8184049 | Thermostat |
|
- | |||||
| 9 | 4359517 | Cover |
|
- | |||||
| 10 | 4359518 | Lamp Holder |
|
- | |||||
| 11 | 8206232A | Oven Lamp (Replaces: 4158432) |
|
Immediately | $ 6.61 | ||||
| 12 | 8184041 | Motor, Ventilation |
|
- | |||||
| 13 | 8184048 | Lead, Wire |
|
- | |||||
| 14 | WP8183507 | Fuse (Replaces: 8183507) |
|
$ 18.33 | |||||
| 15 | 4358659 | Fuse Cap |
|
- | |||||
| 16 | 8204785 | Power Cord |
|
- | |||||
| 20 | W10864204 | Charcoal Filter (Replaces: 8183916) |
|
$ 28.84 | |||||
| 21 | 4358381 | Screw |
|
- | |||||
| 24 | 4358404 | Installation Hardware |
|
- | |||||
| 24 | N/A | Sealer |
|
- | |||||
| 24 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 24 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 |
