SELECT A DIAGRAM

02 - Cabinet And Turntable


03 - Door And Control Panel

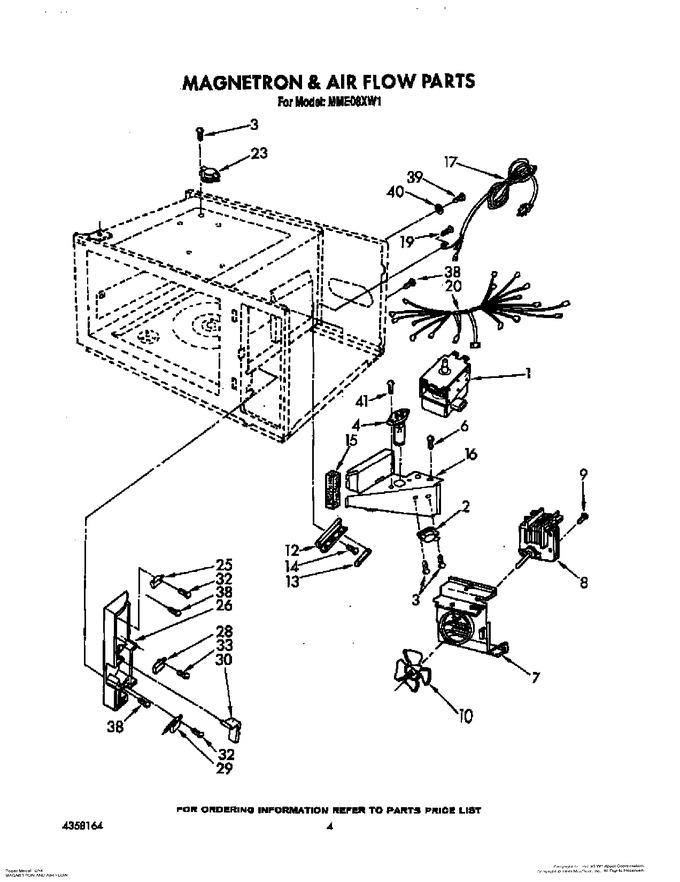

04 - Magnetron And Air Flow, Lit/optional


05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158798		Magnetron		Appelez-nous	-
2	4158474		Thermostat		Appelez-nous	-
3	4158082		Screw No.3x8mm (4)		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
6	4158791		Screw, No.4 X 8		Appelez-nous	-
7	4158797		Bracket, Fan		Appelez-nous	-
8	4158796		Motor, Fan		Appelez-nous	-
9	4158189		Screw No.4x28mm (2)		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
12	4158761		Holder, Fuse		Appelez-nous	-
13	4158378		Fuse		Appelez-nous	-
14	4158079		Screw No.4x8mm (1)				$ 6.69
15	4158967		Seal, Foam		Appelez-nous	-
16	4158801		Air Duct		Appelez-nous	-
17	4158760		Power Cord		Appelez-nous	-
19	4158076		Screw No.4x10mm (7)		Appelez-nous	-
20	4358095		Wiring Harness		Appelez-nous	-
23	4158795		Thermostat, Oven		Appelez-nous	-
25	4392027		Micro Switch, Primary   (Replaces: 4158600)				$ 138.41
26	4158792		Latch Board		Appelez-nous	-
28	4392027		Micro Switch, Monitor   (Replaces: 4158793)				$ 138.41
29	4158651		Micro Switch, Secondary		Appelez-nous	-
30	4158794		Release Rod		Appelez-nous	-
32	4158187		Screw No.3x16mm (2)		Appelez-nous	-
33	4158208		Screw No.3x30mm (1)		Appelez-nous	-
38	4158307		Screw (5)		Appelez-nous	-
39	4158194		Screw		Appelez-nous	-
40	4339419		Washer		Appelez-nous	-
41	4158071		Screw		Appelez-nous	-
	LIT4158664		Guide, Use And Care		Appelez-nous	-
	4158695		Installation Instructions For		Appelez-nous	-
	4158693		Under The Cabinet Mounting Kit		Appelez-nous	-
	4158698		Wall Template		Appelez-nous	-
	LIT4158728		U.t.c. Card		Appelez-nous	-
	LIT4158684		Tech Sheet		Appelez-nous	-
	LIT4358164		Repair Parts List		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
