SELECT A DIAGRAM
02 - Cabinet And Turntable
03 - Door And Control Panel
04 - Magnetron And Air Flow, Lit/optional

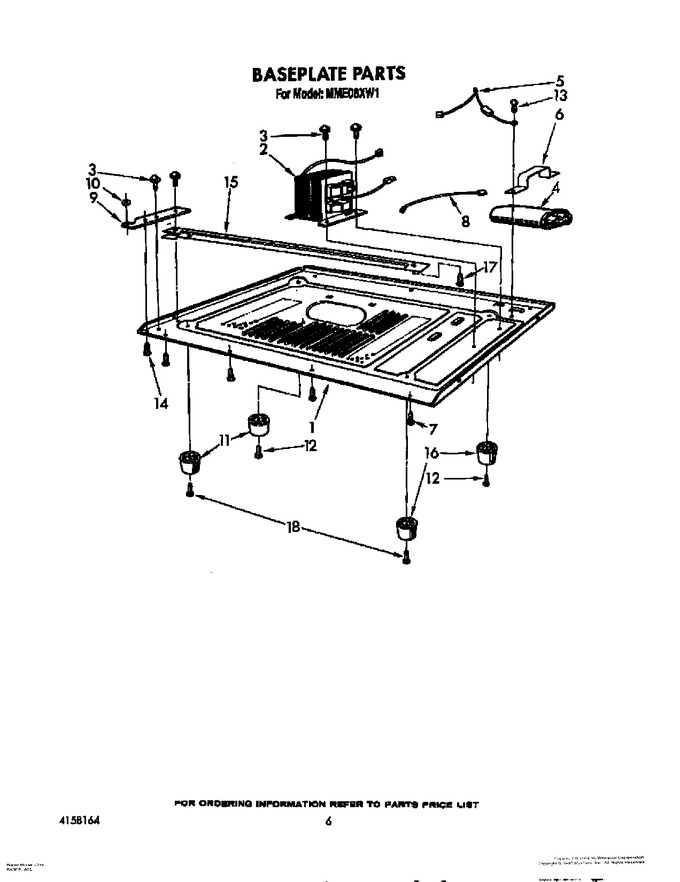

05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158619 | Baseplate |
|
- | |||||
| 2 | 4158802 | Transformer |
|
- | |||||
| 3 | 4158192 | Screw No.5x12mm (4) |
|
- | |||||
| 4 | 4158507 | Capacitor |
|
- | |||||
| 5 | 4158897 | H.v. Diode Cable |
|
- | |||||
| 6 | 4158799 | Bracket, Capacitor |
|
- | |||||
| 7 | 4158076 | Screw No.4x10mm (8) |
|
- | |||||
| 8 | 4158805 | H.v. Cable |
|
- | |||||
| 9 | 4358092 | Hinge Plate, Lower |
|
- | |||||
| 10 | 4158419 | Washer, Hinge |
|
- | |||||
| 11 | 4158780 | Leg, Left |
|
- | |||||
| 12 | 4158472 | Screw No.4x16mm (4) |
|
- | |||||
| 13 | 4158079 | Screw |
|
$ 6.69 | |||||
| 14 | 4158194 | Screw, Machine (1) |
|
- | |||||
| 15 | 4358093 | Bracket, Hinge |
|
- | |||||
| 16 | 4158781 | Leg, Right |
|
- | |||||
| 17 | 4158071 | Screw (2) |
|
- | |||||
| 18 | 4158071 | Screw (2) |
|
- |
