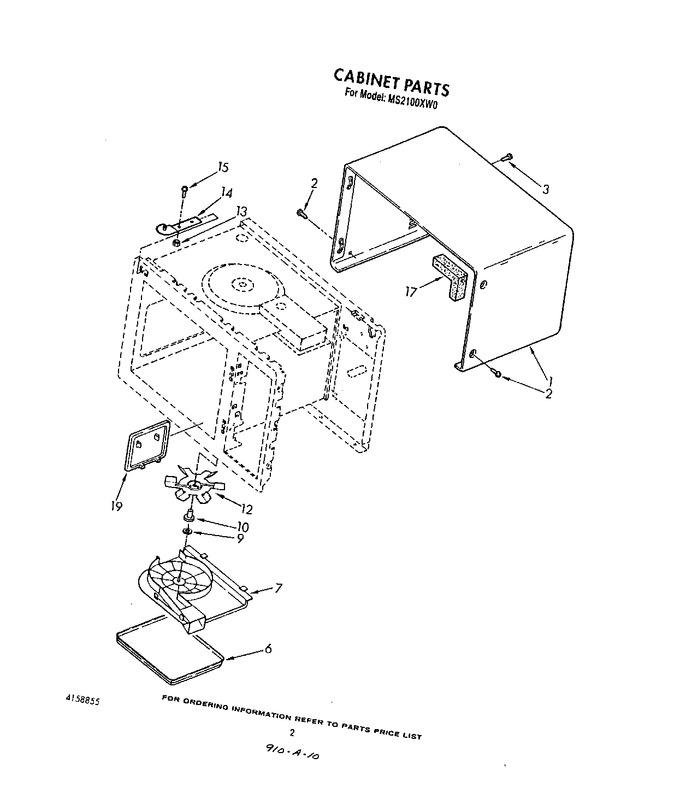

02 - Cabinet
03 - Control Panel And Door
04 - Magnetron And Air Flow
05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158872 | Cabinet Wrapper |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158071 | Screw No.4x10mm (4) |
|
- | |||||
| 6 | 4158876 | Glass Tray |
|
- | |||||
| 7 | 4158873 | Cover, Stirrer |
|
- | |||||
| 9 | 4158905 | Washer |
|
- | |||||
| 10 | 4158623 | Bushing, Stirrer |
|
- | |||||
| 12 | 4158874 | Blade, Stirrer |
|
- | |||||
| 13 | 4158053 | Nut |
|
- | |||||
| 14 | 4158875 | Hinge, Upper |
|
- | |||||
| 15 | 4158192 | Screw (2) |
|
- | |||||
| 17 | 4158878 | Seal, Cavity |
|
- | |||||
| 18 | 4158822 | Base, Turntable |
|
- | |||||
| 19 | 4158790 | Cap, Wave Guide |
|
- | |||||
| LIT4158710 | Guide, Use And Care |
|
- | ||||||
| LIT4158855 | Repair Parts List |
|
- | ||||||
| LIT4158716 | Tech Sheet |
|
- | ||||||
| LIT4158714 | Cook Book |
|
- | ||||||
| LIT4158712 | Auto Set Chart |
|
- | ||||||
| LIT4158708 | Auto Set Guide |
|
- | ||||||
| LIT4158706 | Defrost Guide |
|
- |
