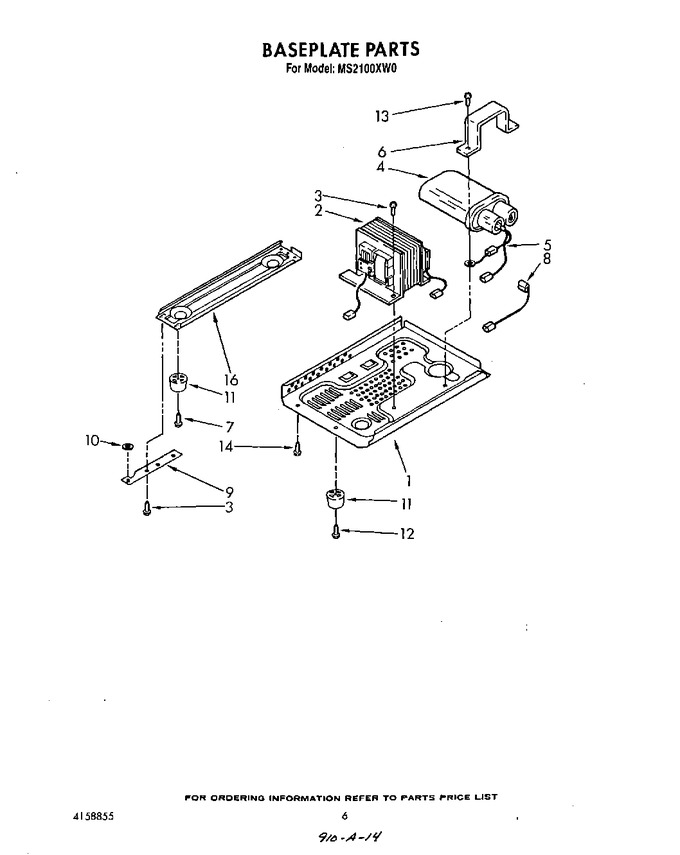

05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158865		Baseplate, Right Side		Appelez-nous	-
2	4158868		Transformer		Appelez-nous	-
3	WP3400094		Screw No.5 X 10 (2)   (Replaces: 4158747)				$ 7.14
4	4158507		Capacitor		Appelez-nous	-
5	4158871		H.v. Diode Cable		Appelez-nous	-
6	4158869		Bracket, Capacitor		Appelez-nous	-
7	4158076		Screw No.4x10mm (8)		Appelez-nous	-
8	4158870		H.v. Cable		Appelez-nous	-
9	4158867		Hinge Plate, Lower		Appelez-nous	-
10	4158117		Washer		Appelez-nous	-
11	4339375		Leg (4)		Appelez-nous	-
12	4158190		Screw (4)		Appelez-nous	-
13	4158791		Screw (2)		Appelez-nous	-
14	4158071		Screw, Machine (2)		Appelez-nous	-
16	4158866		Base Plate, Left Side		Appelez-nous	-
