SELECT A DIAGRAM

02 - Cabinet, Optional


03 - Control Panel And Door

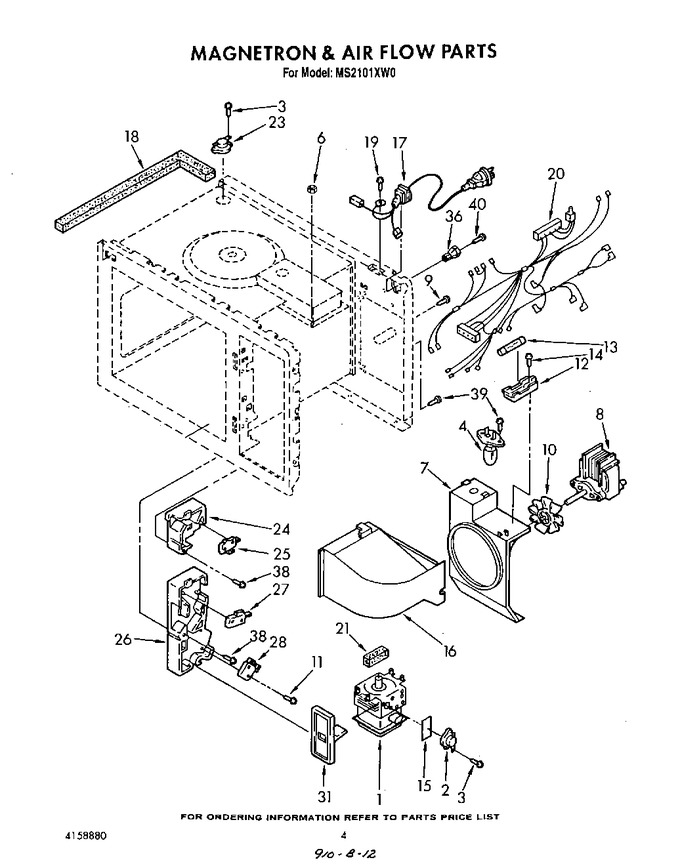

04 - Magnetron And Air Flow


05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158473		Magnetron		Appelez-nous	-
2	4158474		Thermostat Magnetron		Appelez-nous	-
3	4158082		Screw No.3x8mm (4)		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
6	4158053		Nut		Appelez-nous	-
7	4158860		Bracket, Fan		Appelez-nous	-
8	4158861		Motor, Fan		Appelez-nous	-
9	4339398		Screw		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
11	4158187		Screw		Appelez-nous	-
12	4158862		Holder, Fuse		Appelez-nous	-
13	4158636		Fuse		Appelez-nous	-
14	4158072		Screw No.4x8mm (1)		Appelez-nous	-
15	4158396		Insulator, Thermostat		Appelez-nous	-
16	4158859		Air Duct		Appelez-nous	-
17	4158832		Cord, Power		Appelez-nous	-
18	4158863		Seal, Cavity		Appelez-nous	-
19	4158791		Screw No.4 X 10 Mm		Appelez-nous	-
20	4158877		Wiring Harness		Appelez-nous	-
21	4158864		Seal, Foam		Appelez-nous	-
23	4158795		Thermostat, Oven		Appelez-nous	-
24	4158840		Latch, Upper		Appelez-nous	-
25	4392027		Micro Switch (primary)   (Replaces: 4158195)				$ 138.41
26	4158839		Latch, Lower		Appelez-nous	-
27	4392027		Micro Switch, Monitor   (Replaces: 4158486)				$ 138.41
28	4158197		Micro Switch (secondary)		Appelez-nous	-
31	4158155		Rod, Release		Appelez-nous	-
33	4158208		Screw No.3x30mm (1)		Appelez-nous	-
36	4339376		Spacer		Appelez-nous	-
38	4158307		Screw		Appelez-nous	-
39	4158076		Screw (2)		Appelez-nous	-
40	4158190		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
