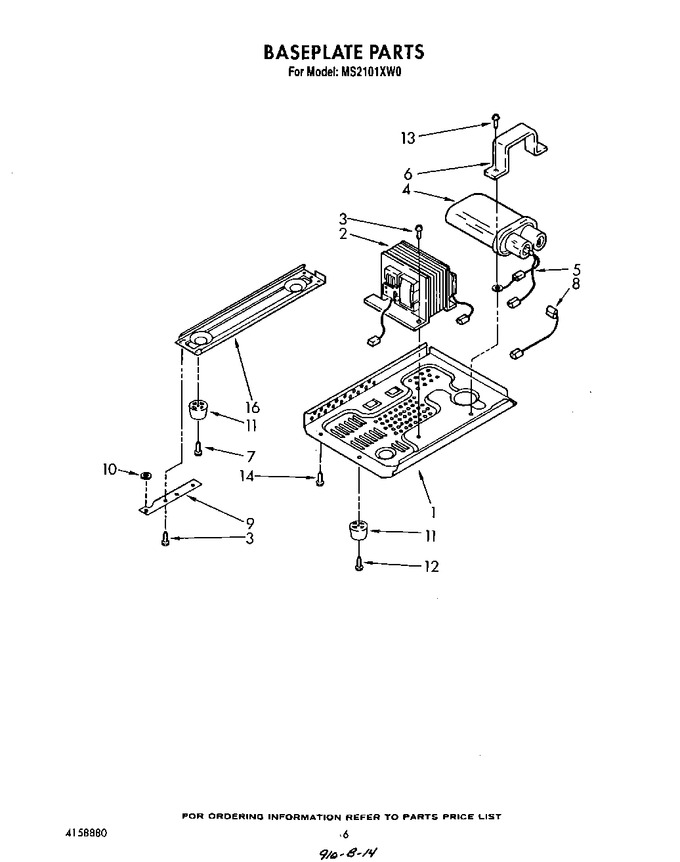

05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158865 | Baseplate, Right Side |
|
- | |||||
| 2 | 4158868 | Transformer |
|
- | |||||
| 3 | WP3400094 | Screw No.5 X 10 (2) (Replaces: 4158747) |
|
$ 7.14 | |||||
| 4 | 4158507 | Capacitor |
|
- | |||||
| 5 | 4158871 | H.v. Diode Cable |
|
- | |||||
| 6 | 4158869 | Bracket, Capacitor |
|
- | |||||
| 7 | 4158076 | Screw No.4x10mm (8) |
|
- | |||||
| 8 | 4158870 | H.v. Cable |
|
- | |||||
| 9 | 4158867 | Hinge Plate, Lower |
|
- | |||||
| 10 | 4158117 | Washer |
|
- | |||||
| 11 | 4339375 | Leg (4) |
|
- | |||||
| 12 | 4158190 | Screw (4) |
|
- | |||||
| 13 | 4158791 | Screw (2) |
|
- | |||||
| 14 | 4158071 | Screw, Machine (2) |
|
- | |||||
| 16 | 4158866 | Base Plate, Left Side |
|
- |
