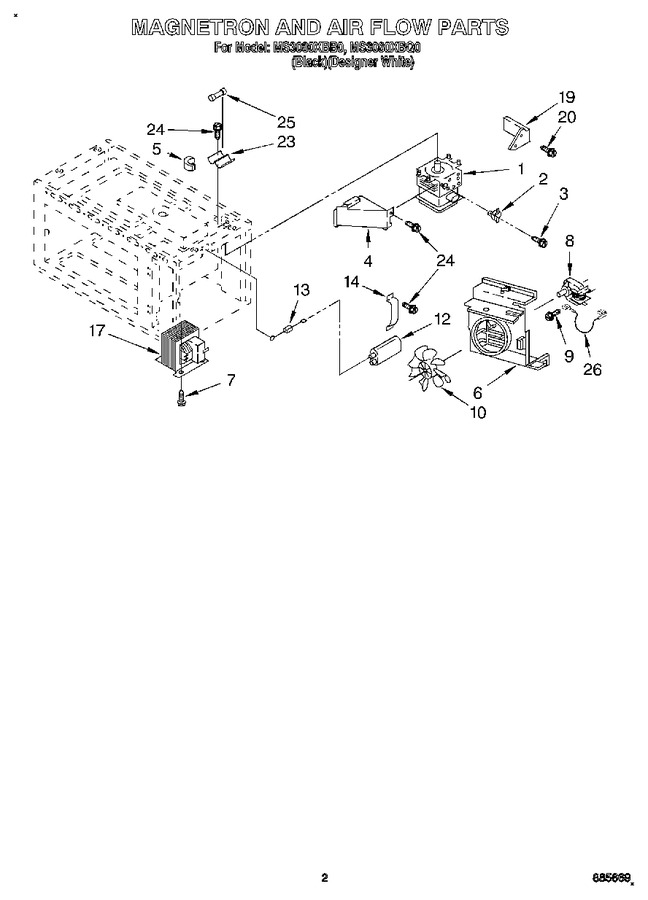

02 - Magnetron And Air Flow
03 - Oven Door And Latch
04 - Control Panel
05 - Wiring Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158473 | Magnetron |
|
- | |||||
| 2 | 4358698 | Thermostat |
|
- | |||||
| 3 | 4358376 | Screw |
|
- | |||||
| 4 | 4358260 | Duct, Air |
|
- | |||||
| 5 | 4358262 | Seal |
|
- | |||||
| 6 | 4358261 | Cover, Fan |
|
- | |||||
| 7 | 4158190 | Screw |
|
- | |||||
| 8 | 4158796 | Motor, Fan |
|
- | |||||
| 9 | 4358190 | Screw |
|
- | |||||
| 10 | 4158758 | Fan |
|
- | |||||
| 12 | 4158466 | Capacitor |
|
- | |||||
| 13 | 4158828 | Diode Cable |
|
- | |||||
| 14 | 4158869 | Bracket, Capacitor |
|
- | |||||
| 17 | 4358253 | Transformer |
|
- | |||||
| 19 | 4358265 | Guide, Air (magnetron) |
|
- | |||||
| 20 | 4358192 | Screw (2) |
|
- | |||||
| 23 | 4358659 | Holder, Fuse |
|
- | |||||
| 24 | 4158079 | Screw |
|
$ 6.69 | |||||
| 25 | 4358704 | Fuse |
|
- | |||||
| 26 | 4158827 | Lead, High Voltagee |
|
- |
