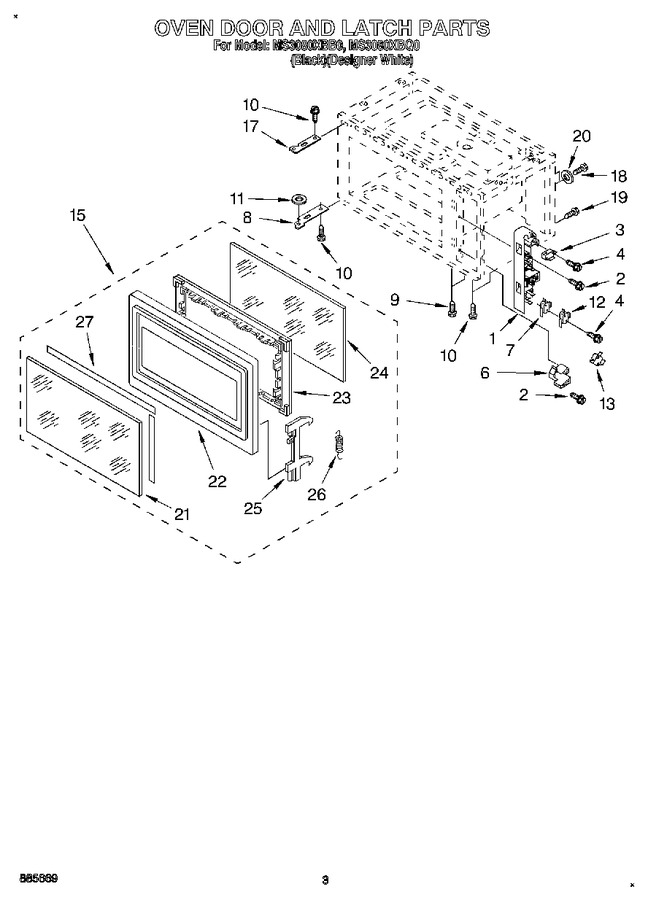

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358266		Latch, Board		Appelez-nous	-
2	4358271		Screw		Appelez-nous	-
3	4392027		Switch, Primary   (Replaces: 4158940)				$ 138.41
4	4358861		Screw, 3 X 16 Mm (2)		Appelez-nous	-
6	4358270		Rod, Release		Appelez-nous	-
7	4392027		Switch, Secondary   (Replaces: 4358269)				$ 138.41
8	4358256		Hinge Plate, Lower		Appelez-nous	-
9	4344826		Screw (3)   (Replaces: 4358489)				$ 14.31
10	WP3400094		Screw, 5 X 10 Mm (2)   (Replaces: 4158747)				$ 7.14
11	4158117		Washer		Appelez-nous	-
12	4392027		Switch, Monitor   (Replaces: 4158941)				$ 138.41
13	4392027		Switch, Secondary   (Replaces: 4358269)				$ 138.41
15	4358865		Door, Complete (black Application)		Appelez-nous	-
15	4358864		Door, Complete (white)		Appelez-nous	-
17	4358246		Hinge Plate, Upper		Appelez-nous	-
18	4358862		Screw (2)		Appelez-nous	-
19	4358381		Screw (4)		Appelez-nous	-
20	4358272		Washer, Spring Lock (2)		Appelez-nous	-
21	4358867		Screen, Front (black Model)		Appelez-nous	-
21	4358866		Screen, Front (white Model)		Appelez-nous	-
22	4358868		Frame, Door (white Model)		Appelez-nous	-
22	4358869		Frame, Door (black Model)		Appelez-nous	-
23	4358870		Choke Cover		Appelez-nous	-
24	4358871		Tape, Seal		Appelez-nous	-
25	4358872		Latch		Appelez-nous	-
26	4358875		Spring, Latch		Appelez-nous	-
27	4358608		Tape, Double		Appelez-nous	-
