SELECT A DIAGRAM

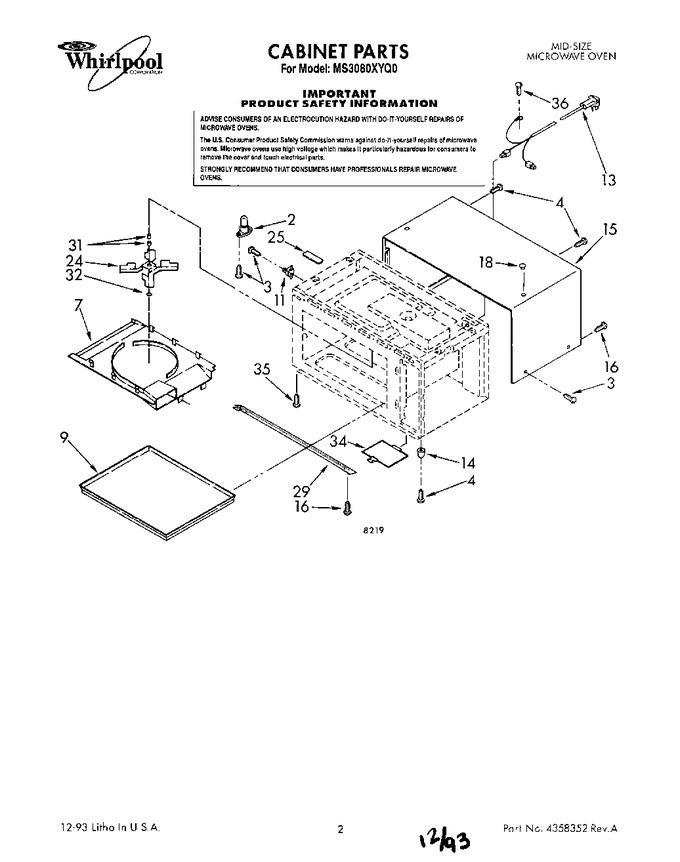

01 - Cabinet


02 - Magnetron And Air Flow


03 - Oven Door And Latch


04 - Control Panel


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4158586		Base Less Light		Appelez-nous	-
3	4158084		Screw		Appelez-nous	-
4	4158190		Screw		Appelez-nous	-
7	4358249		Cover, Stirrer		Appelez-nous	-
9	4358248		Tray, Glass		Appelez-nous	-
11	4158795		Thermostat, Oven		Appelez-nous	-
13	4158832		Cord, Power		Appelez-nous	-
14	4358255		Foot (left Side (2))		Appelez-nous	-
14	4158930		Foot (right Side (2))		Appelez-nous	-
15	4358247		Wrapper, Cabinet (woodgrain)		Appelez-nous	-
15	4358283		Wrapper, Cabinet (white)		Appelez-nous	-
16	4158071		Screw, 4 X 8 (7)		Appelez-nous	-
18	4158748		Plug, Hole (white)		Appelez-nous	-
18	4158918		Plug, Hole (woodgrain Application)		Appelez-nous	-
24	4358250		Blade, Stirrer		Appelez-nous	-
25	4158864		Foam		Appelez-nous	-
29	4358257		Support, Base		Appelez-nous	-
31	4358251		Bushing		Appelez-nous	-
32	4158905		Washer		Appelez-nous	-
34	4358285		Cover, Base		Appelez-nous	-
35	4158472		Screw, Left Foot Mounting (2)		Appelez-nous	-
36	4158791		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
