SELECT A DIAGRAM

01 - Cabinet


02 - Magnetron And Air Flow


03 - Oven Door And Latch

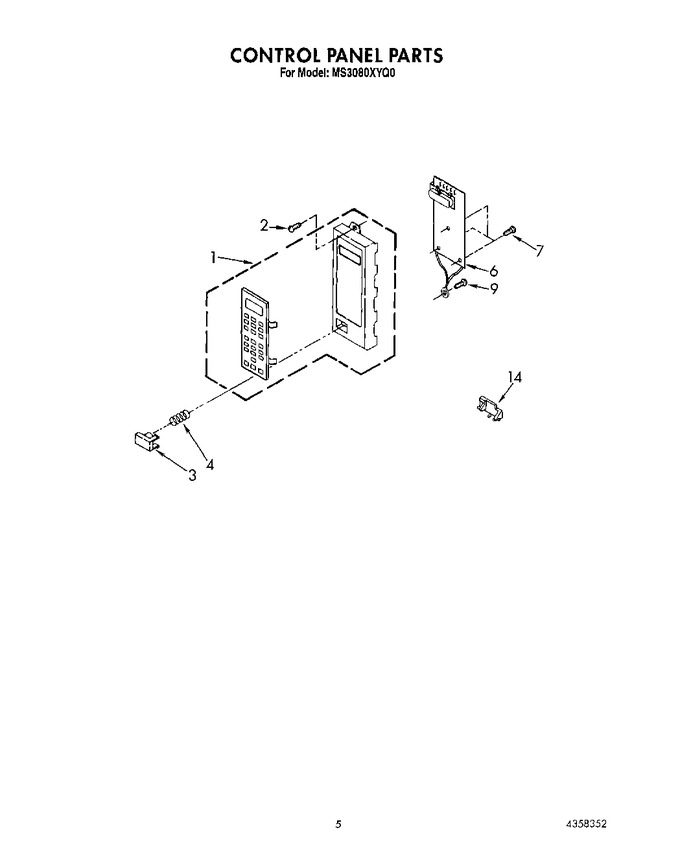

04 - Control Panel


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358372		Control Panel Complete (white)		Appelez-nous	-
1	4358373		Control Panel Complete (wood Grain Application)		Appelez-nous	-
2	4158190		Screw		Appelez-nous	-
3	4358282		Button, Push To Start (woodgrain Application)		Appelez-nous	-
3	4358289		Button, Push To Start (white)		Appelez-nous	-
4	4158178		Spring, Button				$ 5.83
6	4358281		Microcomputer		Appelez-nous	-
7	4158079		Screw (3)				$ 6.69
9	4158791		Screw		Appelez-nous	-
14	4158808		Lever, Release		Appelez-nous	-
