SELECT A DIAGRAM

01 - Door, Literature


02 - Control Panel


03 - Oven Cavity


04 - Latch Board


05 - Oven Interior


06 - Base Plate

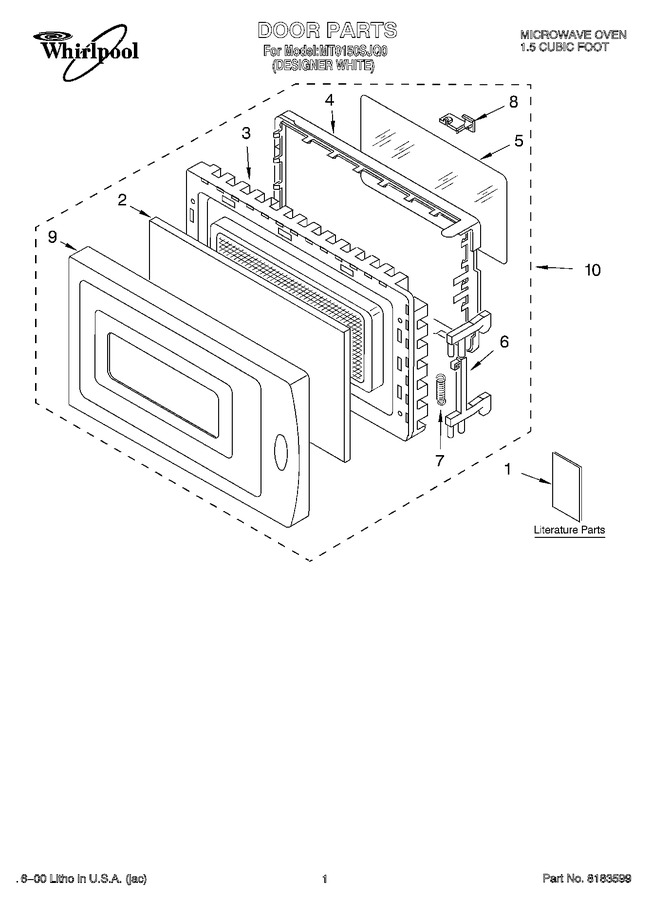

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8172248		Literature Parts (guide, U & C)		Appelez-nous	-
1	LIT8172247		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8172249		Literature Parts (cook Guide Label)		Appelez-nous	-
2	8183616		Front Screen		Appelez-nous	-
3	8183615		Door Frame Assembly		Appelez-nous	-
4	4359815		Choke Cover		Appelez-nous	-
5	4359816		Tape, Seal		Appelez-nous	-
6	4359765		Latch		Appelez-nous	-
7	4359707		Spring, Latch		Appelez-nous	-
8	4359710		Cap		Appelez-nous	-
9	8183618		Panel, Door		Appelez-nous	-
10	8183617		Door Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
