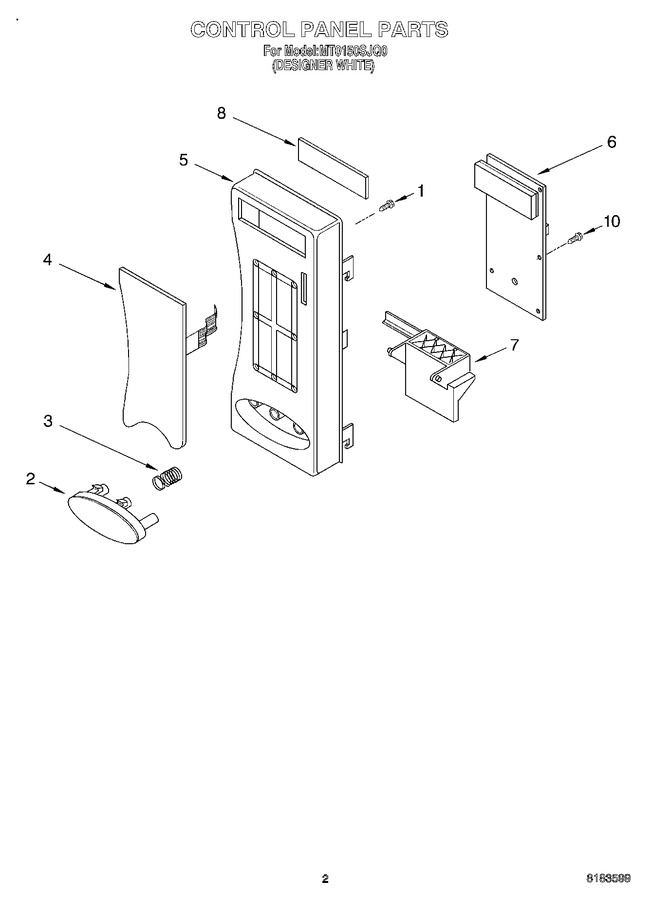

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358381 | Screw |
|
- | |||||
| 2 | 8171799 | Release Button |
|
- | |||||
| 3 | 4158178 | Spring, Button |
|
$ 5.83 | |||||
| 4 | 8183621 | Key Membrane |
|
- | |||||
| 5 | 8183619 | Control Panel |
|
- | |||||
| 6 | 4359744 | P.c.b Sub Assembly |
|
- | |||||
| 7 | 4359718 | Lever, Release |
|
- | |||||
| 8 | 4359720 | Window |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
