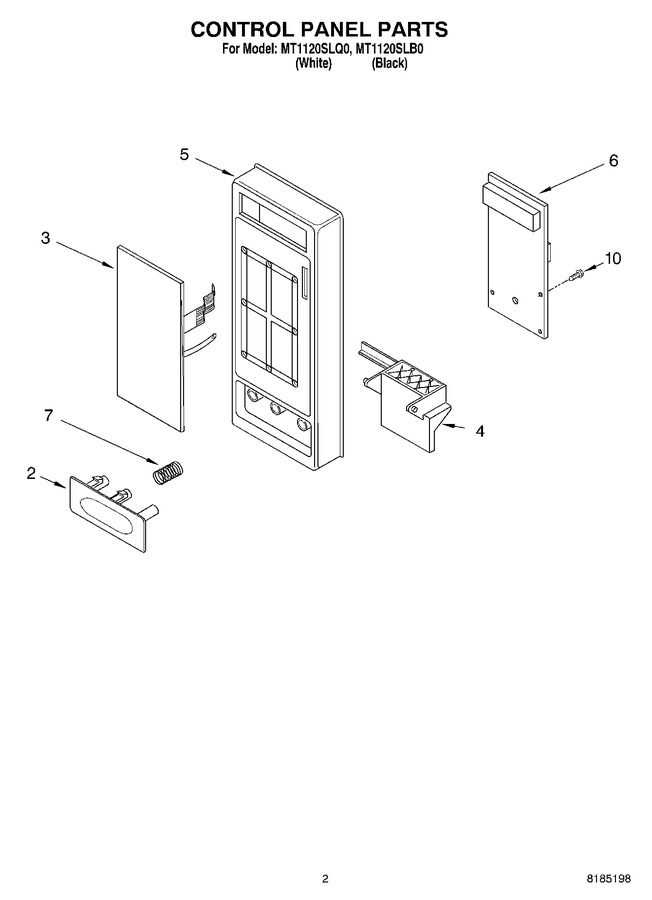

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8185266 | Button (white) |
|
- | |||||
| 2 | 8185265 | Button (black) |
|
- | |||||
| 3 | 8185247 | Switch, Membrane (white) |
|
- | |||||
| 3 | 8185262 | Switch, Membrane (black) |
|
- | |||||
| 4 | 8184269 | Lever, Release |
|
$ 36.79 | |||||
| 5 | 8185264 | Control Panel (white) |
|
- | |||||
| 5 | 8185263 | Control Panel (black) |
|
- | |||||
| 6 | 8185248 | Microcomputer |
|
- | |||||
| 7 | 8184272 | Spring |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
