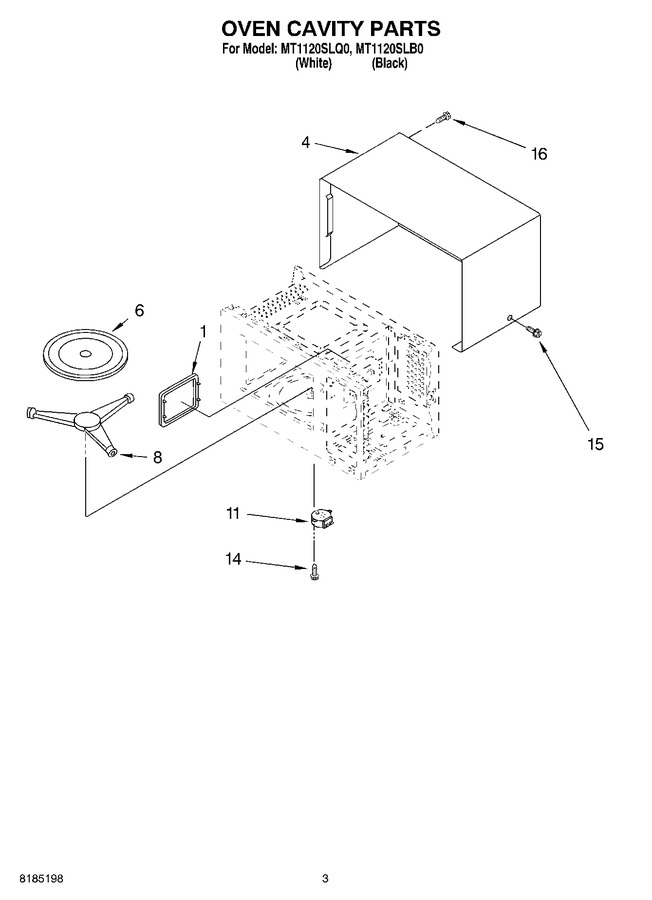

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184278 | Canopy |
|
$ 27.95 | |||||
| 4 | 8185268 | Outer Case (white) |
|
- | |||||
| 4 | 8185267 | Outer Case (black) |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 8185270 | Turntable Support |
|
- | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8184375) |
|
$ 160.07 | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 4358192 | Screw |
|
- |
