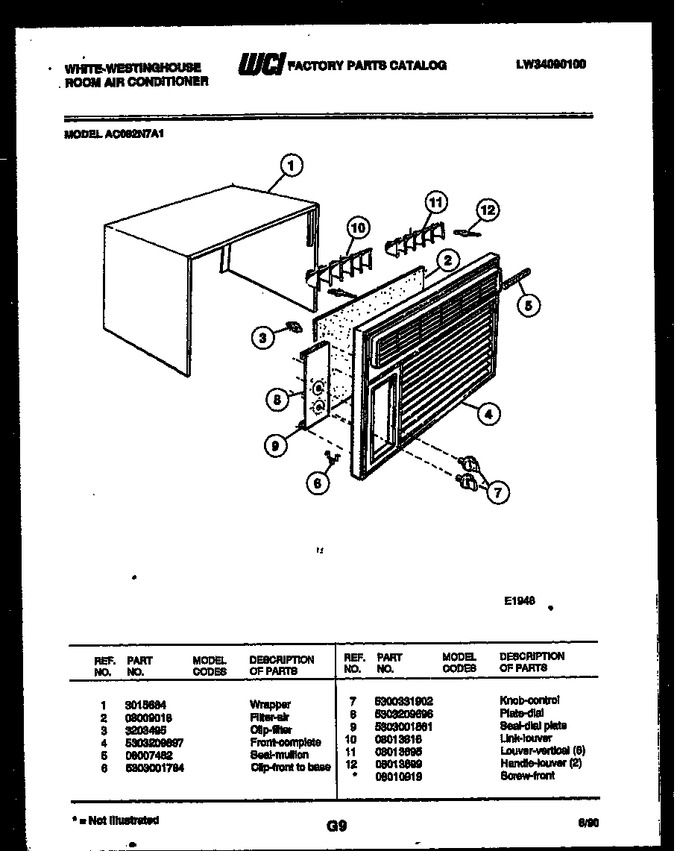

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 08009018 | Filter-air |
|
- | |||||
| 3 | 3203495 | Clip-filter |
|
- | |||||
| 4 | 5303209697 | Front-complete |
|
- | |||||
| 5 | 08007482 | Seal-mullion |
|
- | |||||
| 6 | 5303001784 | Clip-front To Base |
|
- | |||||
| 7 | 5300331902 | Knob Control |
|
- | |||||
| 8 | 5303209696 | Plate-dial |
|
- | |||||
| 9 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 10 | 08013816 | Link-louver |
|
- | |||||
| 11 | 08013695 | Louver-vertical (6) |
|
- | |||||
| 12 | 08013699 | Handle-louver (2) |
|
- | |||||
| *30595 | 08010919 | Screw-front |
|
- |
