02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

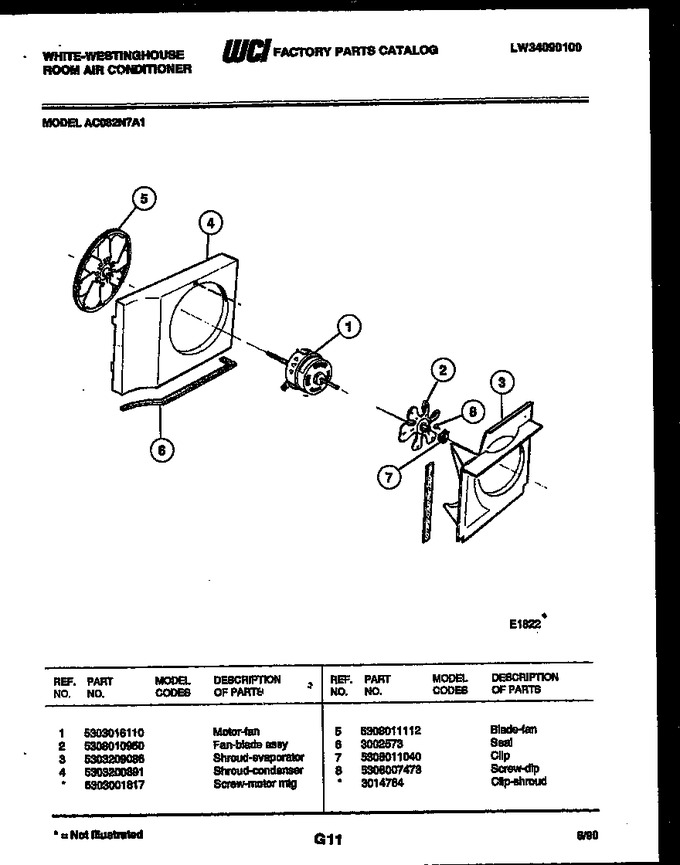

| 1 | 5303016110 | Motor-fan |
|
- | |||||
| 2 | 5308010950 | Fan-blade Assy |
|
- | |||||
| 3 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 4 | 5303200891 | Shroud-condenser |
|
- | |||||
| 5 | 5308011112 | Blade-fan |
|
- | |||||
| 6 | 3002573 | Seal |
|
- | |||||
| 7 | 5308011040 | Clip |
|
- | |||||
| 8 | 5308007473 | Screw-dip |
|
- | |||||
| *30600 | 3014764 | Clip-shroud |
|
- | |||||
| 4A | 5303001817 | Screw-motor Mtg (non-illustrated) |
|
- |
