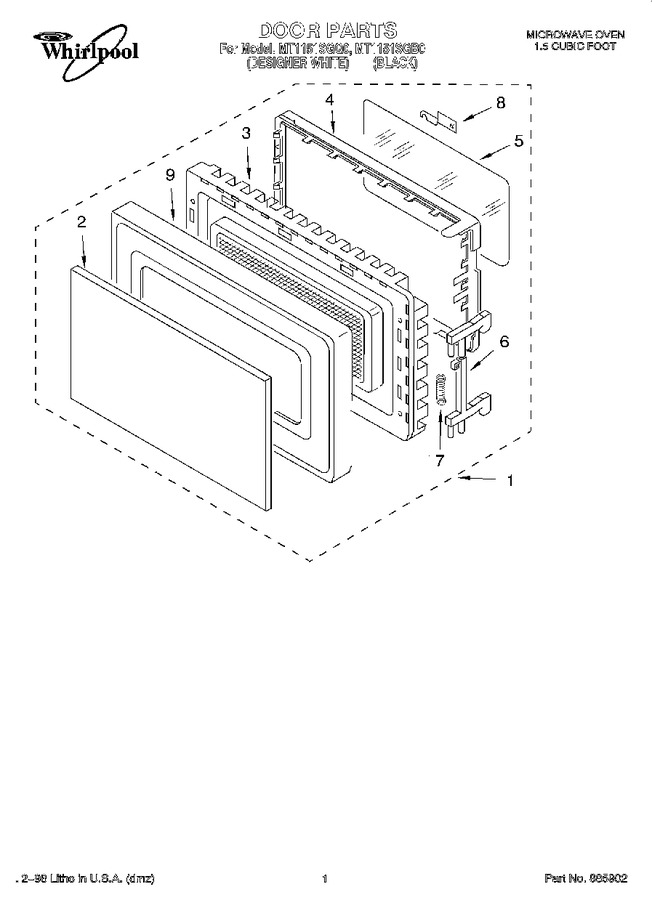

01 - Door
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior, Literature
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359809 | Door Assembly (white Model) |
|
- | |||||
| 1 | 4359810 | Door Assembly (black Model) |
|
- | |||||
| 2 | 4359811 | Front Screen (white Model) |
|
- | |||||
| 2 | 4359812 | Front Screen (black Model) |
|
- | |||||
| 3 | 4359813 | Door Frame Assembly (white Model) |
|
- | |||||
| 3 | 4359814 | Door Frame Assembly (black Model) |
|
- | |||||
| 4 | 4359815 | Choke Cover |
|
- | |||||
| 5 | 4359816 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 8 | 4359710 | Cap |
|
- | |||||
| 9 | 4359817 | Panel, Door (white Model) |
|
- | |||||
| 9 | 4359818 | Panel, Door (black Model) |
|
- |
