SELECT A DIAGRAM

01 - Door


02 - Control Panel


03 - Oven Cavity


04 - Latch Board


05 - Oven Interior, Literature


06 - Base Plate

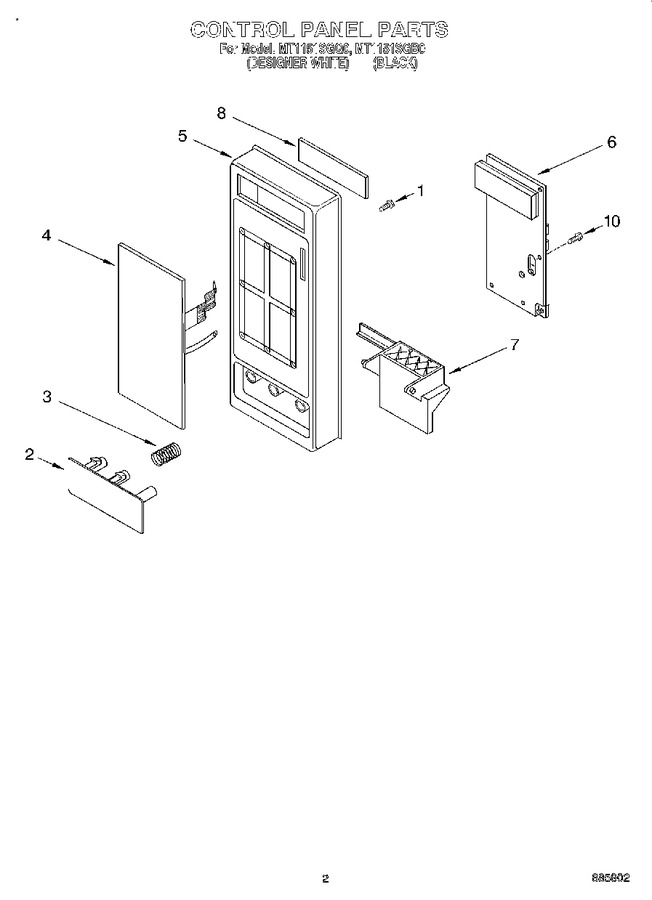

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358381		Screw		Appelez-nous	-
2	4359820		Release Button (black Model)		Appelez-nous	-
2	4359819		Release Button (white Model)		Appelez-nous	-
3	4158178		Spring, Button				$ 5.83
4	4359822		Key Membrane (black Model)		Appelez-nous	-
4	4359821		Key Membrane (white Model)		Appelez-nous	-
5	4359824		Control Panel (black Model (also, Order Key Membrane))		Appelez-nous	-
5	4359823		Control Panel (white Model)		Appelez-nous	-
6	4359744		P.c.b Sub Assembly		Appelez-nous	-
7	4359718		Lever, Release		Appelez-nous	-
8	4359720		Window		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
