Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158812 Cabinet Wrapper Appelez-nous -
2 4158084 Screw No.4x12mm (4) Appelez-nous -
3 4158071 Screw No.4x10mm (4) Appelez-nous -
4 4158786 Shaft, Turntable Appelez-nous -
5 4158782 Motor, Turntable Appelez-nous -
6 4158813 Tray, Glass Appelez-nous -
8 4158079 Screw Special Order $ 6.69

9 4358094 Cap, Air Guide Appelez-nous -
11 4158787 Roller, Table (3) Appelez-nous -
14 4158739 Hinge, Upper Appelez-nous -
15 WP3400094 Screw   (Replaces: 4158747) Special Order $ 7.14

18 4158783 Cover, Turntable Motor Appelez-nous -
19 4158788 Base, Turntable Appelez-nous -
LIT4158700 Guide, Use And Care Appelez-nous -
LIT4358124 Repair Parts List Appelez-nous -
LIT4158704 Tech Sheet Appelez-nous -
LIT4158702 Auto Set Guide Appelez-nous -
LIT4158703 Defrost Guide Appelez-nous -
LIT4158701 Auto Set Chart Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

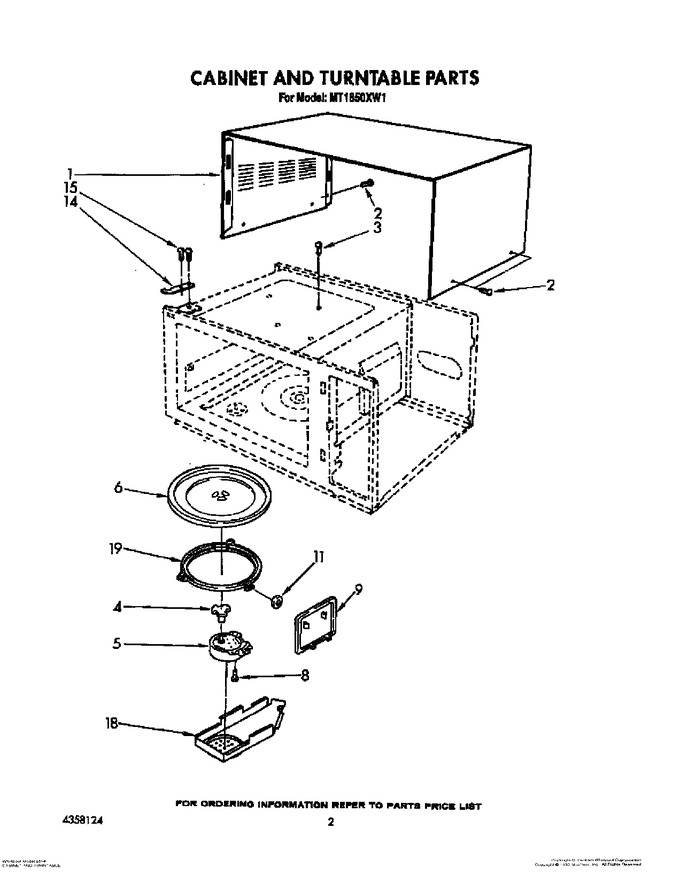

Diagram for MT1850XW1
