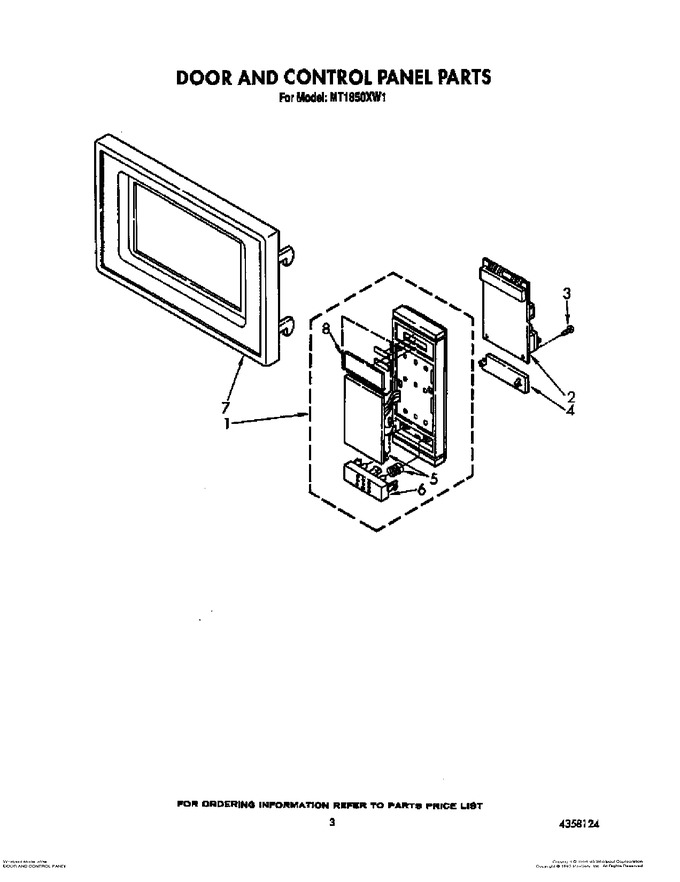

03 - Door And Control Panel
04 - Magnetron And Air Flow
05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358122 | Control Panel |
|
- | |||||
| 2 | 4358083 | Microcomputer |
|
- | |||||
| 3 | 4158076 | Screw 4 X 10 (2) |
|
- | |||||
| 4 | 4158808 | Lever, Release |
|
- | |||||
| 5 | 4158809 | Spring, Release Button (2) |
|
- | |||||
| 6 | 4158810 | Release Button |
|
- | |||||
| 7 | 4158956 | Door, Complete |
|
- | |||||
| 8 | 4158955 | Digitron Window |
|
- |
