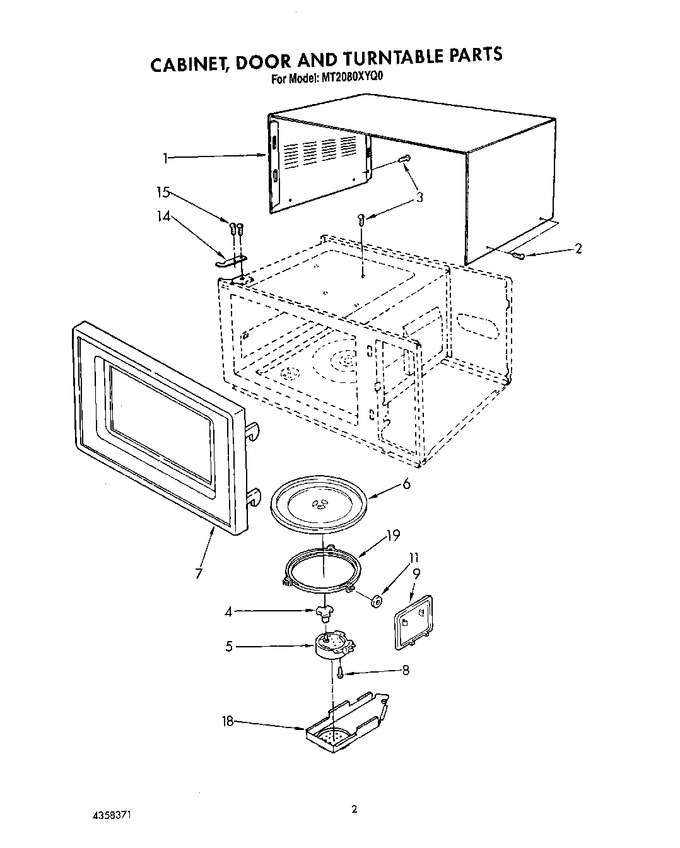

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358128 | Cabinet Wrapper (white) |
|
- | |||||
| 1 | 4158812 | Cabinet Wrapper (wood Grain Application) |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158071 | Screw No.4x10mm (4) |
|
- | |||||
| 4 | 4158786 | Shaft, Turntable |
|
- | |||||
| 5 | 4158782 | Motor, Turntable |
|
- | |||||
| 6 | 4158813 | Tray, Glass |
|
- | |||||
| 7 | 4358320 | Door, Complete (white) |
|
- | |||||
| 7 | 4358319 | Door, Complete (wood Grain Application) |
|
- | |||||
| 8 | 4158079 | Screw |
|
$ 6.69 | |||||
| 9 | 4358094 | Cap, Air Guide |
|
- | |||||
| 11 | 4358370 | Roller, Table (3) |
|
- | |||||
| 14 | 4158739 | Hinge, Upper |
|
- | |||||
| 15 | WP3400094 | Screw (Replaces: 4158747) |
|
$ 7.14 | |||||
| 18 | 4158783 | Cover, Turntable Motor |
|
- | |||||
| 19 | 4358369 | Base, Turntable |
|
- | |||||
| LIT4158701 | Auto Set Chart |
|
- | ||||||
| LIT4358196 | Guide, Use And Care |
|
- | ||||||
| LIT4358371 | Repair Parts List |
|
- | ||||||
| LIT4358226 | Tech Sheet |
|
- |
