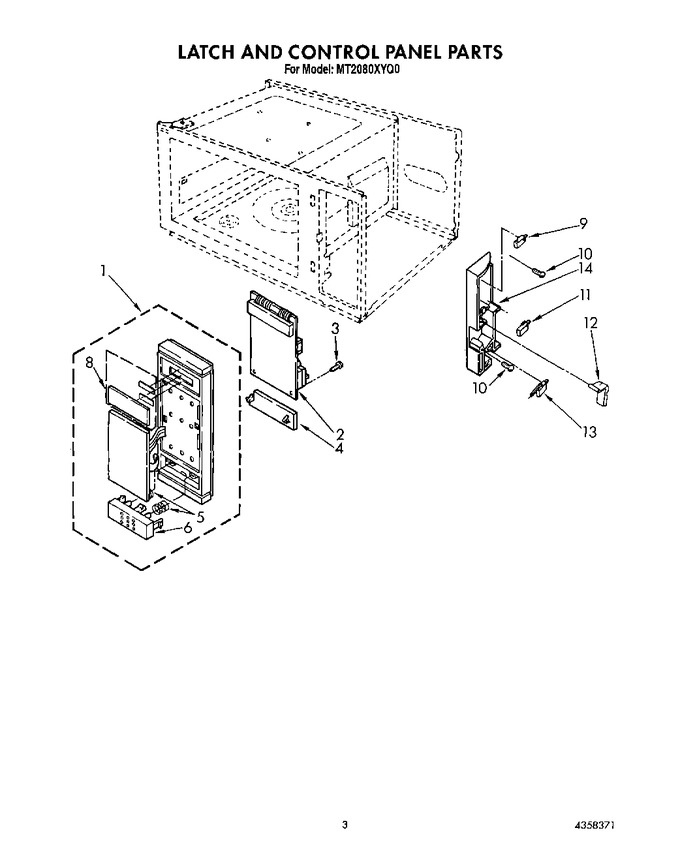

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358325 | Control Panel Complete (wood Grain Application) |
|
- | |||||
| 1 | 4358326 | Control Panel Complete (white) |
|
- | |||||
| 2 | 4358302 | Microcomputer |
|
- | |||||
| 3 | 4158076 | Screw 4 X 10 (2) |
|
- | |||||
| 4 | 4158808 | Lever, Release |
|
- | |||||
| 5 | 4158178 | Spring, Release Button (2) |
|
$ 5.83 | |||||
| 6 | 4158960 | Release Button (white) |
|
- | |||||
| 6 | 4158810 | Release Button (wood Grain Application) |
|
- | |||||
| 8 | 4358321 | Digitron Window (wood Grain Application) |
|
- | |||||
| 8 | 4358322 | Digitron Window (white) |
|
- | |||||
| 9 | 4392027 | Micro Switch, Primary (Replaces: 4158940) |
|
$ 138.41 | |||||
| 10 | 4358051 | Screw |
|
- | |||||
| 11 | 4392027 | Micro Switch, Monitor (Replaces: 4158941) |
|
$ 138.41 | |||||
| 12 | 4158794 | Release Rod |
|
- | |||||
| 13 | 4392027 | Micro Switch, Secondary (Replaces: 4358269) |
|
$ 138.41 | |||||
| 14 | 4158792 | Latch Board |
|
- |
