SELECT A DIAGRAM

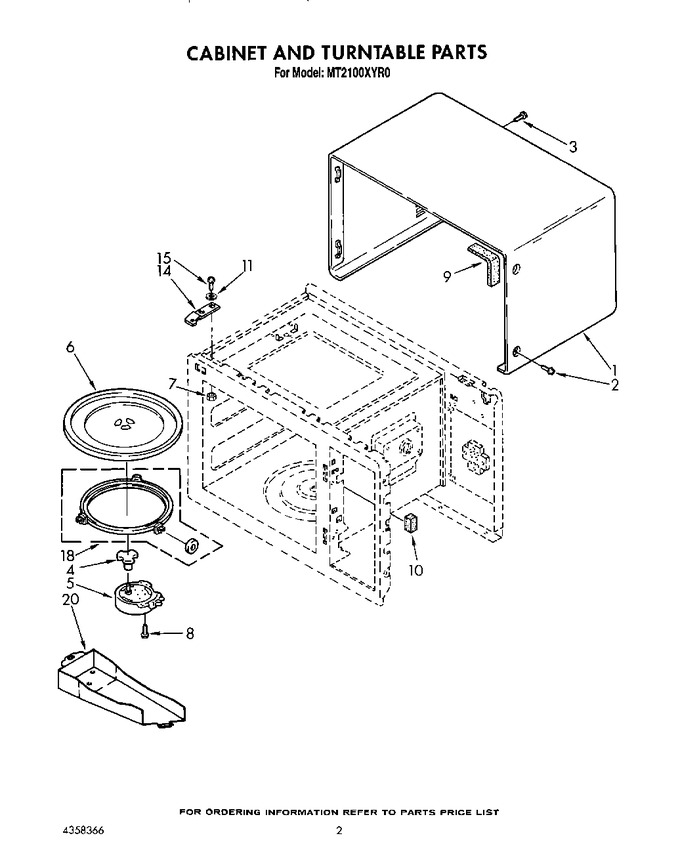

02 - Cabinet And Turntable
03 - Control Panel And Door
04 - Magnetron And Air Flow, Lit/optional
05 - Baseplate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358354 | Cabinet Wrapper |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158071 | Screw No.4x10mm (4) |
|
- | |||||
| 4 | 4158786 | Shaft, Turntable |
|
- | |||||
| 5 | 4158944 | Motor, Turntable |
|
- | |||||
| 6 | 4158813 | Tray, Glass |
|
- | |||||
| 7 | 4158403 | Nut, (2) |
|
- | |||||
| 8 | 4158079 | Screw |
|
$ 6.69 | |||||
| 9 | 4158903 | Seal, Cabinet |
|
- | |||||
| 10 | 4158904 | Seal, Cavity |
|
- | |||||
| 11 | 4158894 | Washer |
|
- | |||||
| 14 | 4158902 | Hinge, Upper |
|
- | |||||
| 15 | 4158192 | Screw (2) |
|
- | |||||
| 18 | 4158899 | Base, Turntable |
|
- | |||||
| 20 | 4158895 | Cover, Turntable Motor |
|
- |
