02 - Cabinet And Turntable


03 - Control Panel And Door

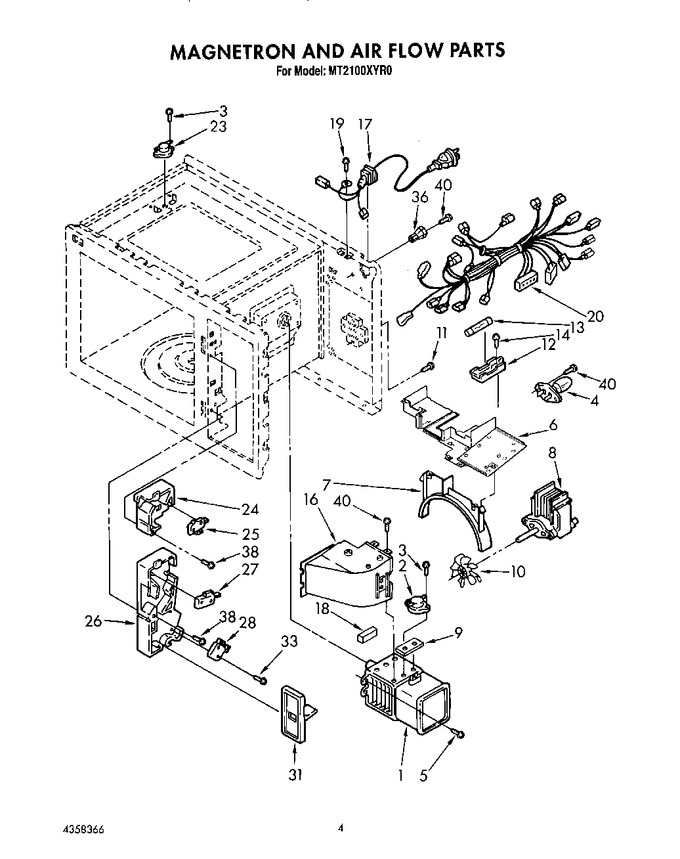

04 - Magnetron And Air Flow, Lit/optional


05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158798		Magnetron		Appelez-nous	-
2	4158539		Thermostat, Magnetron		Appelez-nous	-
3	4358359		Screw		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
5	WP3400094		Screw (4)   (Replaces: 4158747)				$ 7.14
6	4158889		Guide, Air		Appelez-nous	-
7	4158890		Bracket, Fan		Appelez-nous	-
8	4158891		Motor, Fan		Appelez-nous	-
9	4158396		Insulator, Thermostat		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
11	4339398		Screw		Appelez-nous	-
12	4158862		Holder, Fuse		Appelez-nous	-
13	4358177		Fuse		Appelez-nous	-
14	4158072		Screw No.4x8mm (1)		Appelez-nous	-
16	4158887		Air Duct		Appelez-nous	-
17	4158832		Cord, Power		Appelez-nous	-
18	4358358		Cushion, Magnetron		Appelez-nous	-
19	4158071		Screw No.4 X 10 Mm		Appelez-nous	-
20	4358310		Wiring Harness		Appelez-nous	-
23	4158795		Thermostat, Oven		Appelez-nous	-
24	4158840		Latch, Upper		Appelez-nous	-
25	4392027		Micro Switch, Primary   (Replaces: 4158940)				$ 138.41
26	4158839		Latch, Lower		Appelez-nous	-
27	4392027		Micro Switch, Monitor   (Replaces: 4358269)				$ 138.41
28	4392027		Micro Switch, Secondary   (Replaces: 4158941)				$ 138.41
31	4158155		Rod, Release		Appelez-nous	-
33	4158187		Screw		Appelez-nous	-
36	4339376		Spacer		Appelez-nous	-
38	4158307		Screw		Appelez-nous	-
40	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
40	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
40	242831		Wire (14 Ga. 200 C Red)				$ 342.23
40	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
40	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
40	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
40	4158190		Screw		Appelez-nous	-
40	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
40	832889		Cord Brown (1/2 Oz.)				$ 26.23
40	261900		Citrine White (6 Oz.)				$ 51.34
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
40	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
40	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
40	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
40	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
40	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
40	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
40	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	LIT4358366		Repair Parts List		Appelez-nous	-
	LIT4358197		Guide, Use And Care		Appelez-nous	-
	LIT4358227		Tech Sheet		Appelez-nous	-
	LIT4158713		Cook Book		Appelez-nous	-
