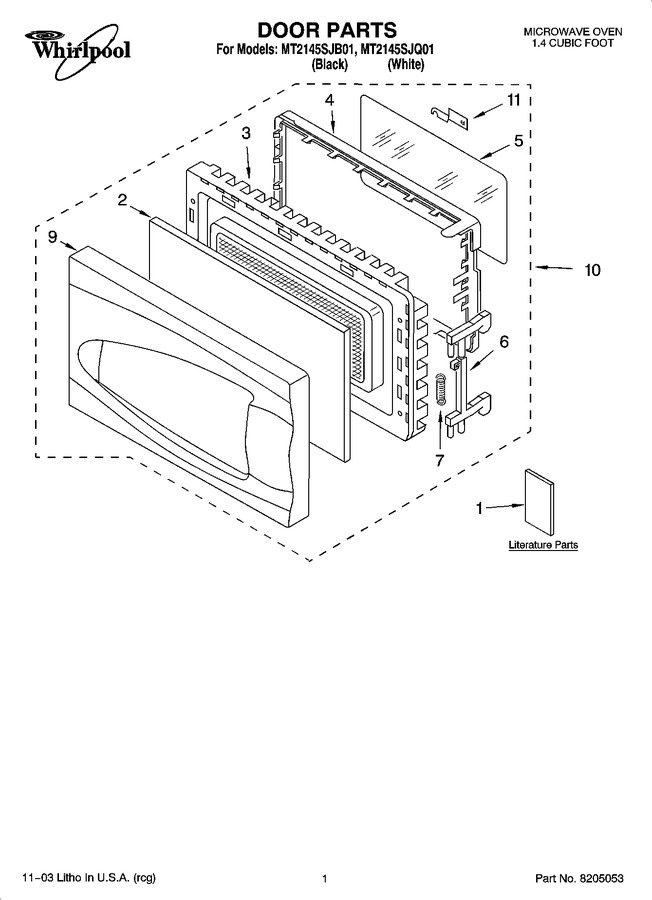

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8172177 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8172208 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8172217 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8172220 | Literature Parts (template-b/i Kit Cook Guide Label) |
|
- | |||||
| 1 | LIT8172194 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8172195 | Literature Parts (spanish) |
|
- | |||||
| 2 | 4359934 | Front Screen |
|
$ 11.12 | |||||
| 3 | 4359761 | Door Frame Assembly |
|
- | |||||
| 4 | 4359763 | Choke Cover |
|
- | |||||
| 5 | 4359764 | Tape, Seal |
|
- | |||||
| 6 | 8171850 | Latch |
|
- | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 9 | 8171990 | Panel, Door (white) |
|
- | |||||
| 9 | 8171991 | Panel, Door (black) |
|
- | |||||
| 10 | 8171988 | Door Assembly (white) |
|
- | |||||
| 10 | 8171989 | Door Assembly (black) |
|
- | |||||
| 11 | 4359710 | Cap |
|
- |
