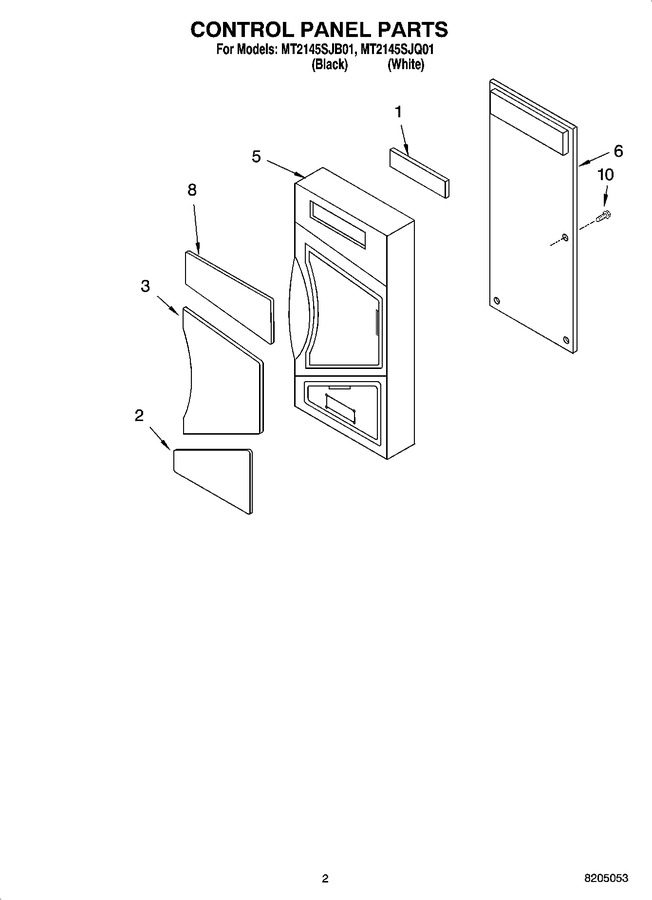

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359720 | Window |
|
- | |||||
| 2 | 8183521 | Switch, Membrane (white) |
|
- | |||||
| 2 | 8183518 | Switch, Membrane (black) |
|
- | |||||
| 3 | 8183529 | Switch, Membrane (white) |
|
- | |||||
| 3 | 8183528 | Switch, Membrane (black) |
|
- | |||||
| 5 | 8183522 | Control Panel (black) |
|
- | |||||
| 5 | 8183523 | Control Panel (white) |
|
- | |||||
| 6 | 8183860 | Microcomputer |
|
- | |||||
| 8 | 8171996 | Window |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
