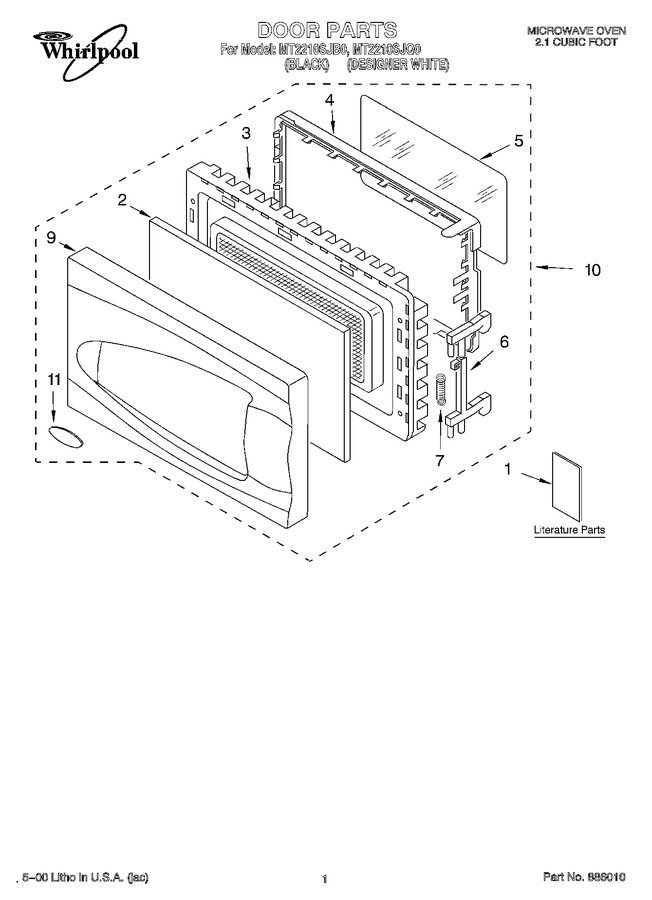

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8172175		Literature Parts (guide, U & C)		Appelez-nous	-
1	LIT8172207		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8172192		Literature Parts (cook Guide Label) (english)		Appelez-nous	-
1	LIT8172193		Literature Parts (cook Guide Label) (spanish)		Appelez-nous	-
1	LIT8172218		Literature Parts (cook Guide Label) (instructions, Installation)		Appelez-nous	-
1	LIT8172220		Literature Parts (cook Guide Label) (template, Built-in Kit)		Appelez-nous	-
2	8172006		Front Screen		Appelez-nous	-
3	8171890		Door Frame Assembly		Appelez-nous	-
4	4359869		Choke Cover		Appelez-nous	-
5	4359870		Tape, Seal		Appelez-nous	-
6	8171850		Latch		Appelez-nous	-
7	8171918		Spring, Latch				$ 51.20
9	8172007		Panel, Door (white)		Appelez-nous	-
9	8172008		Panel, Door (black)		Appelez-nous	-
10	8172004		Door Assembly (white)		Appelez-nous	-
10	8172005		Door Assembly (black)		Appelez-nous	-
11	8171921		Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
