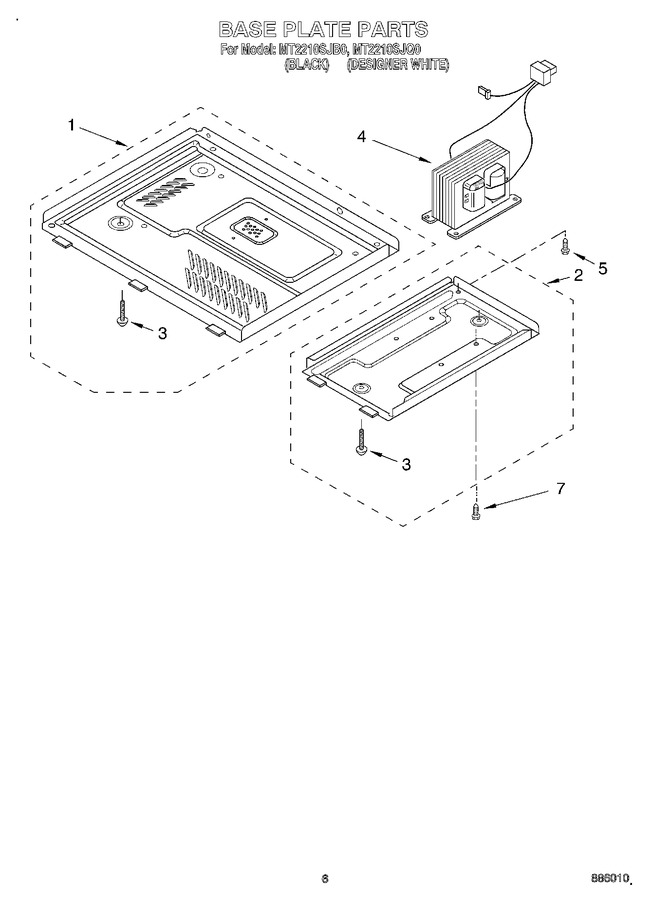

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359921 | Base Plate (l) |
|
- | |||||
| 2 | 8183516 | Base Plate (r) |
|
- | |||||
| 3 | 8171902 | Leg |
|
- | |||||
| 4 | 8171809 | Transformer |
|
- | |||||
| 5 | 4358192 | Screw |
|
- | |||||
| 7 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 |
