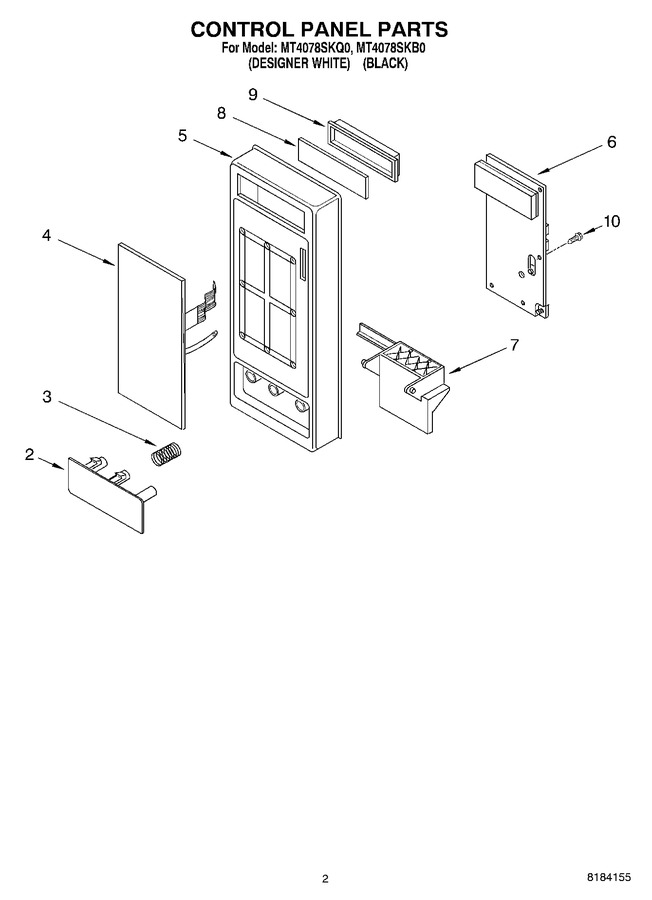

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8184365		Release Button (black Model)		Appelez-nous	-
2	8184366		Release Button (white Model)				$ 6.78
3	8184272		Spring, Button		Appelez-nous	-
4	8184367		Key Membrane (black Model)		Appelez-nous	-
4	8184368		Key Membrane (white Model)				$ 103.65
5	8184360		Control Panel (black Model (also, Order Key Membrane))		Appelez-nous	-
5	8184361		Control Panel (white Model)		Appelez-nous	-
6	8184369		Microcomputer		Appelez-nous	-
7	8184269		Lever, Release				$ 36.79
8	4359720		Window		Appelez-nous	-
9	8184364		Holder		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-
