| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

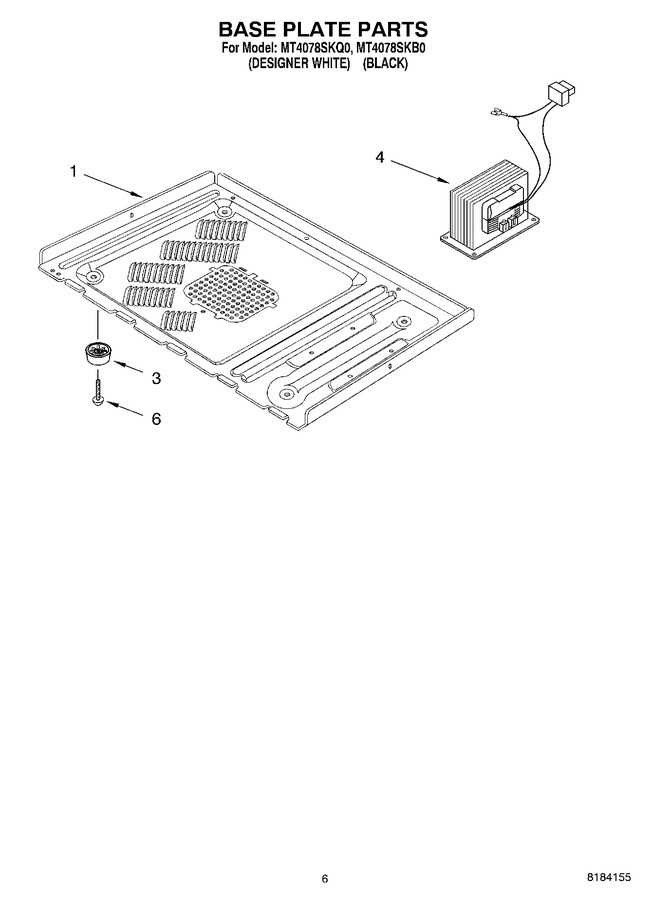

| 1 | 8184384 | Base Plate Assy |
|
- | |||||
| 3 | 8184385 | Cap |
|
$ 18.96 | |||||
| 4 | 8184380 | Transformer |
|
- | |||||
| 6 | 4358381 | Screw |
|
- | |||||
| 6 | 8184371 | Utc Kit |
|
- |
