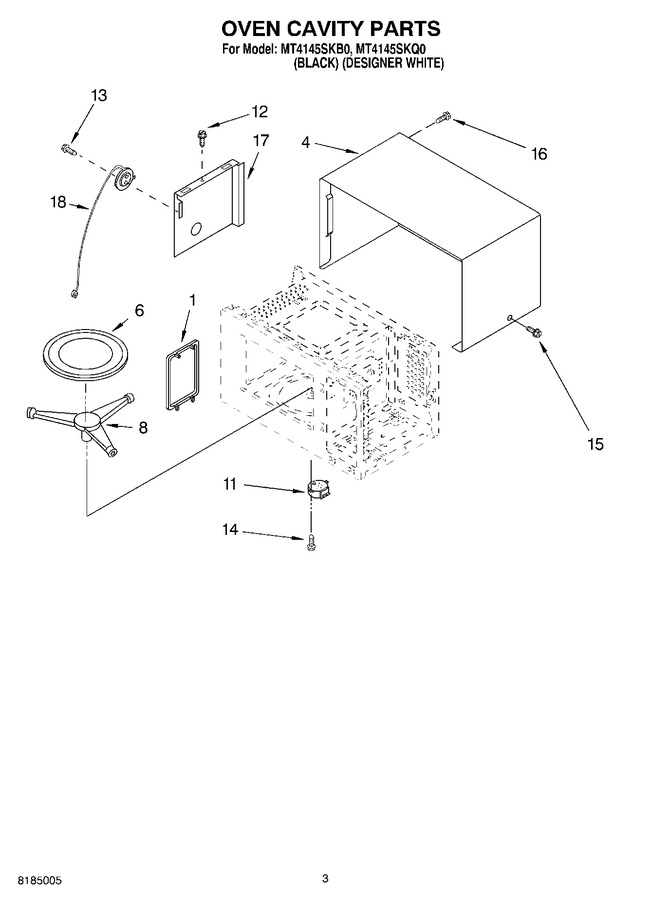

03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171935 | Canopy |
|
- | |||||
| 4 | 8183611 | Outer Case (black) |
|
- | |||||
| 4 | 8184534 | Outer Case (white) |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 4359884 | Turntable Support |
|
- | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8183504) |
|
$ 160.07 | |||||
| 12 | 4358192 | Screw |
|
- | |||||
| 13 | 4358450 | Screw |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 4358829 | Screw (black) |
|
- | |||||
| 15 | W11245710 | Screw (white) (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 8171862 | Screw |
|
- | |||||
| 17 | 8183515 | Duct-sensor |
|
- | |||||
| 18 | 8184814 | Sensor |
|
- |
