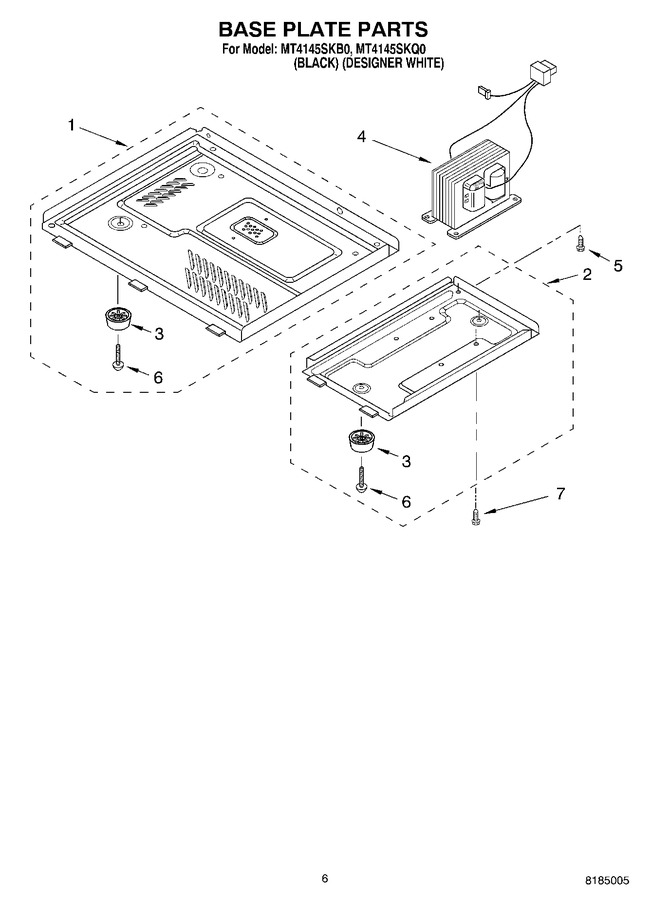

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door, Literature
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8172002 | Base Plate (l) |
|
- | |||||
| 2 | 8172001 | Base Plate (r) |
|
- | |||||
| 3 | 4358487 | Leg |
|
- | |||||
| 4 | 8171809 | Transformer |
|
- | |||||
| 5 | 4358192 | Screw |
|
- | |||||
| 6 | 4358381 | Screw |
|
- | |||||
| 7 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 7 | 137XHB | 27`` Lack |
|
- | |||||
| 7 | 137XHQ | 27`` Hite |
|
- | |||||
| 7 | 137XHT | 27`` Iscuit |
|
- | |||||
| 7 | 130XHB | 30`` Lack |
|
- | |||||
| 7 | 130XHQ | 30`` Hite |
|
- | |||||
| 7 | 130XHT | 30`` Iscuit |
|
- | |||||
| 7 | 134XHB | 24`` Lack |
|
- | |||||
| 7 | 134XHQ | 24`` Hite |
|
- | |||||
| 7 | 134XHT | 24`` Iscuit |
|
- |
