SELECT A DIAGRAM

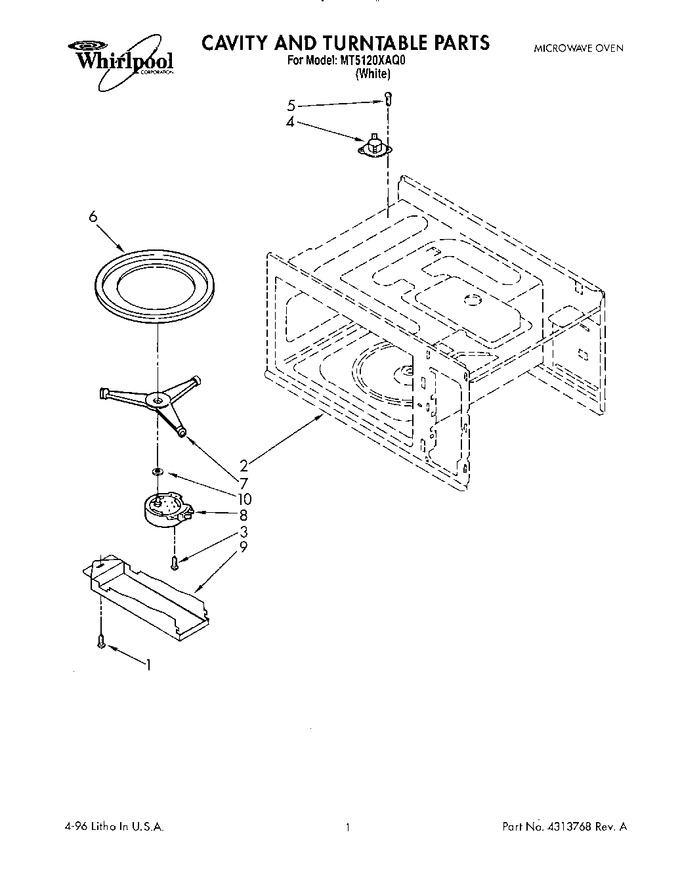

01 - Cavity And Turntable, Lit/optional


02 - Magnetron And Air Flow


03 - Cabinet


04 - Door And Latch


05 - Control Panel, Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313661		Screw		Appelez-nous	-
3	4174757		Screw, 3 X 8 Mm		Appelez-nous	-
4	4313674		Thermostat, Oven		Appelez-nous	-
5	4174826		Screw, 3 X 8 Mm		Appelez-nous	-
6	WP8184775		Tray, Glass   (Replaces: 4313640)				$ 128.72
7	4365526		Support, Turntable		Appelez-nous	-
8	4357340		Motor, Turntable		Appelez-nous	-
9	4313028		Cover, Motor		Appelez-nous	-
10	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
10	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
10	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
10	4313642		Gasket, Turntable		Appelez-nous	-
10	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
10	832889		Cord Brown (1/2 Oz.)				$ 26.23
10	261900		Citrine White (6 Oz.)				$ 51.34
10	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
10	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
10	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
10	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
10	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
10	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
10	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
10	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
10	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
10	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
10	242831		Wire (14 Ga. 200 C Red)				$ 342.23
10	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	LIT4313764		Tech Sheet		Appelez-nous	-
	LIT4313762		Use And Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
