01 - Cavity And Turntable, Lit/optional
02 - Magnetron And Air Flow
03 - Cabinet
04 - Door And Latch

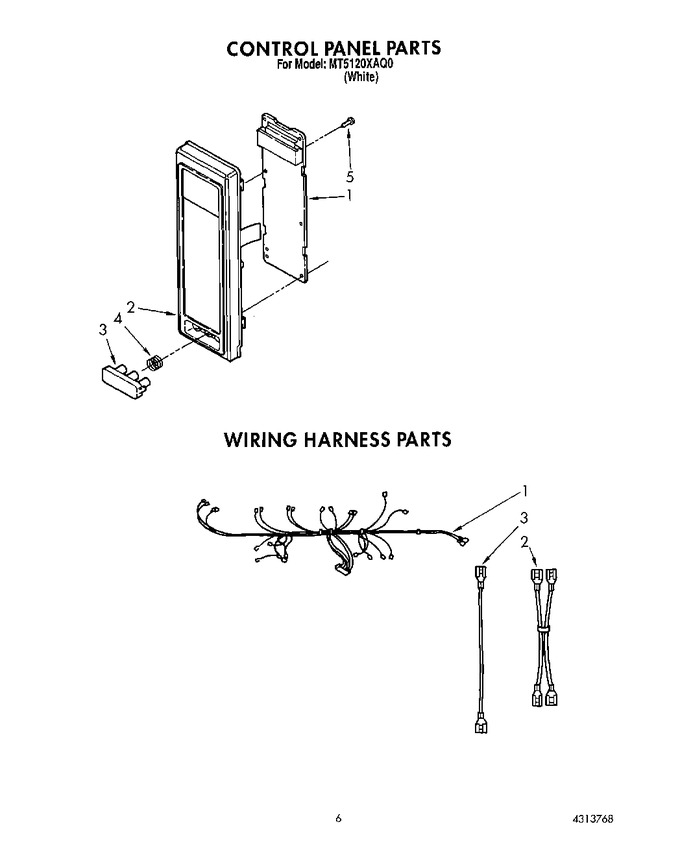

05 - Control Panel, Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4365538 | Harness, Main |
|
- | |||||
| 1 | 4313031 | Microcomputer |
|
- | |||||
| 2 | 4365539 | Harness, Thermal Protection |
|
- | |||||
| 2 | 4313032 | Control Panel |
|
- | |||||
| 3 | 4313679 | Wire, High Voltage |
|
- | |||||
| 3 | 4313630 | Push Button |
|
- | |||||
| 4 | 4313631 | Spring, Button |
|
- | |||||
| 5 | 4313632 | Screw |
|
- |
