SELECT A DIAGRAM

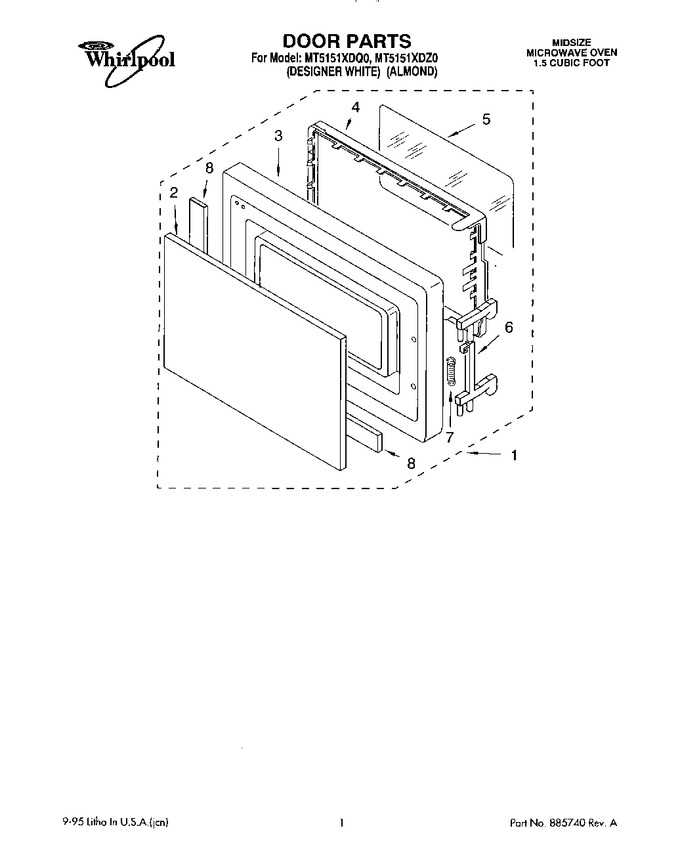

01 - Door
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior, Literature
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359137 | Door Assembly (white Model) |
|
- | |||||
| 1 | 4359173 | Door Assembly (almond Model) |
|
- | |||||
| 2 | 4359138 | Front Screen (white Model) |
|
- | |||||
| 2 | 4359174 | Front Screen (almond Model) |
|
- | |||||
| 3 | 4359262 | Door Frame Assembly (white Model) |
|
- | |||||
| 3 | 4359269 | Door Frame Assembly (almond Model) |
|
- | |||||
| 4 | 4359140 | Choke Cover |
|
- | |||||
| 5 | 4359141 | Tape, Seal |
|
- | |||||
| 6 | 4359142 | Latch |
|
- | |||||
| 7 | 4358607 | Spring, Latch |
|
- | |||||
| 8 | 4358608 | Tape, Toyo |
|
- |
