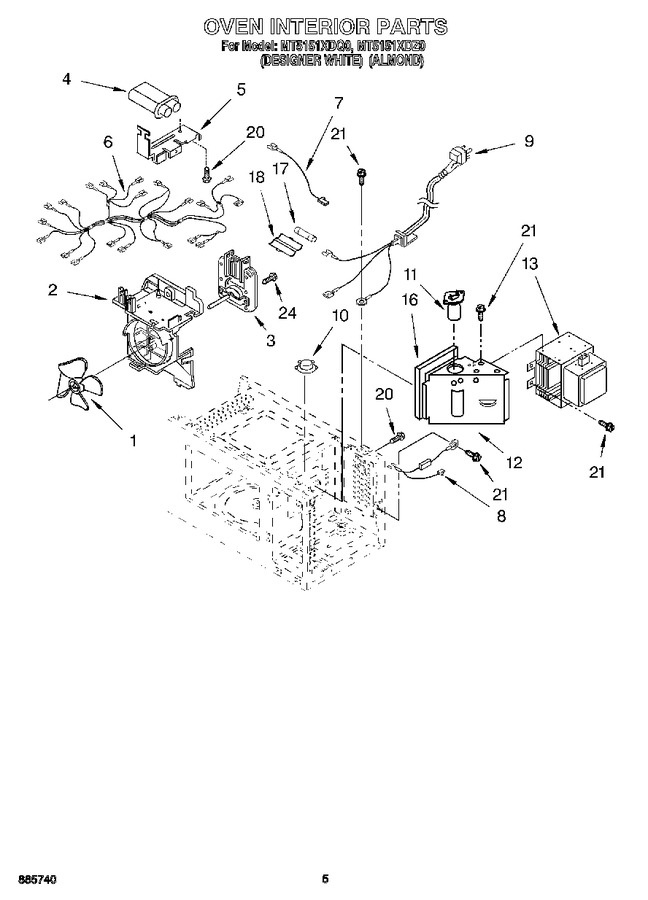

05 - Oven Interior, Literature
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158758 | Propeller |
|
- | |||||
| 2 | 4359158 | Guide, Suction |
|
- | |||||
| 3 | 4358643 | Motor, Fan |
|
- | |||||
| 4 | 4359159 | H.v. Capacitor |
|
- | |||||
| 5 | 4359161 | H.v.c. Bracket |
|
- | |||||
| 6 | 4359162 | Leadwire Assembly |
|
- | |||||
| 7 | 4158827 | H.v. Cable Ass`y |
|
- | |||||
| 8 | 4158828 | H.v. Diode Cable |
|
- | |||||
| 9 | 4358653 | Cord, Power |
|
- | |||||
| 10 | 4359163 | Thermostat |
|
- | |||||
| 11 | 4359165 | Lamp, Baseless |
|
- | |||||
| 12 | 4359166 | Duct, Air |
|
- | |||||
| 13 | 4158798 | Magnetron |
|
- | |||||
| 16 | 4359167 | Cushion |
|
- | |||||
| 17 | 4358704 | Fuse |
|
- | |||||
| 18 | 4358659 | Cap, Fuse |
|
- | |||||
| 20 | 4358381 | Screw (2) |
|
- | |||||
| 21 | 4344826 | Screw (13) (Replaces: 4358489) |
|
$ 14.31 | |||||
| 24 | 4358190 | Screw (2) |
|
- | |||||
| LIT4359215 | Use & Care Guide |
|
- | ||||||
| LIT4359043 | Tech Sheet |
|
- | ||||||
| LIT4359044 | Cook Guide Label |
|
- |
