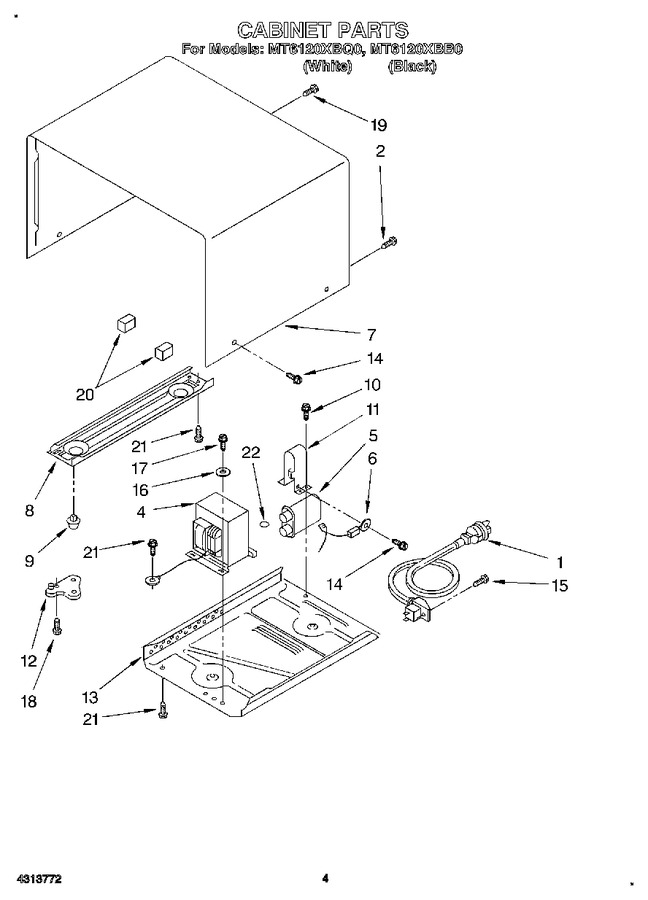

03 - Cabinet


04 - Door And Latch


05 - Control Panel


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4174647		Power Cord		Appelez-nous	-
2	4357320		Screw		Appelez-nous	-
4	4313677		Transformer		Appelez-nous	-
5	4313605		Capacitor		Appelez-nous	-
6	4313671		Rectifier		Appelez-nous	-
7	4365572		Outer Cabinet (white)		Appelez-nous	-
7	4365583		Outer Cabinet (black)		Appelez-nous	-
8	4357345		Base Plate, Left Side		Appelez-nous	-
9	4313684		Foot (4)		Appelez-nous	-
10	4313663		Screw		Appelez-nous	-
11	4313681		Bracket, Capacitor		Appelez-nous	-
12	4313619		Hinge, Lower		Appelez-nous	-
13	4313621		Base Plate, Right Side		Appelez-nous	-
14	4174821		Screw, Cabinet (black)		Appelez-nous	-
14	4313668		Screw, Cabinet (white)		Appelez-nous	-
15	4312922		Screw		Appelez-nous	-
16	4357327		Washer, Ground		Appelez-nous	-
17	4313662		Screw		Appelez-nous	-
18	4313034		Screw		Appelez-nous	-
19	4313665		Screw		Appelez-nous	-
20	4313644		Shield, Wire (2)		Appelez-nous	-
21	4313661		Screw		Appelez-nous	-
22	4365501		Washer		Appelez-nous	-
