01 - Cavity And Turntable, Lit/optional
02 - Magnetron And Air Flow
03 - Cabinet

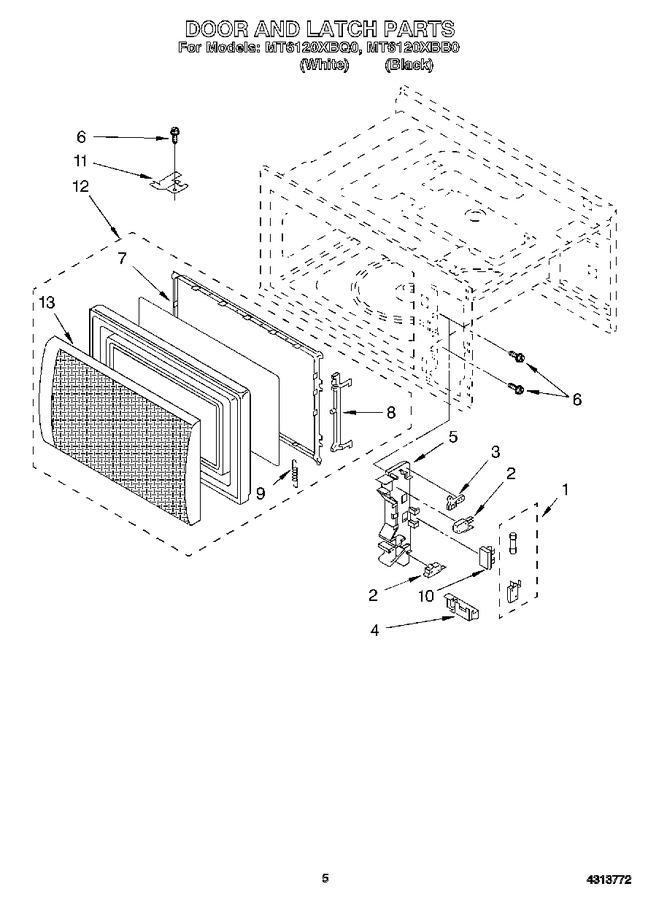

04 - Door And Latch
05 - Control Panel
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313673 | Switch And Fuse Assembly |
|
- | |||||
| 2 | 4392027 | Secondary And Door Switch (Replaces: 4365522) |
|
$ 138.41 | |||||
| 3 | 4312877 | Hook, Lever |
|
- | |||||
| 4 | 4313624 | Latch Lever |
|
- | |||||
| 5 | 4313620 | Latch Hook |
|
- | |||||
| 6 | W11233072 | Screw, (Replaces: 4174784) |
|
Immediately | $ 12.62 | ||||
| 7 | 4313651 | Choke Cover (white) |
|
- | |||||
| 7 | 4313650 | Choke Cover (black) |
|
- | |||||
| 8 | 4313652 | Latch, Door (black) |
|
- | |||||
| 8 | 4313653 | Latch, Door (white) |
|
- | |||||
| 9 | 4174992 | Spring, Latch |
|
- | |||||
| 10 | 4174899 | Holder, Fuse |
|
- | |||||
| 11 | 4313030 | Hinge, Upper |
|
- | |||||
| 12 | 4365584 | Door, Complete (black) |
|
- | |||||
| 12 | 4365585 | Door, Complete (white) |
|
- | |||||
| 13 | 4365587 | Assembly, Door Screen (white) |
|
- | |||||
| 13 | 4365586 | Assembly, Door Screen (black) |
|
- |
