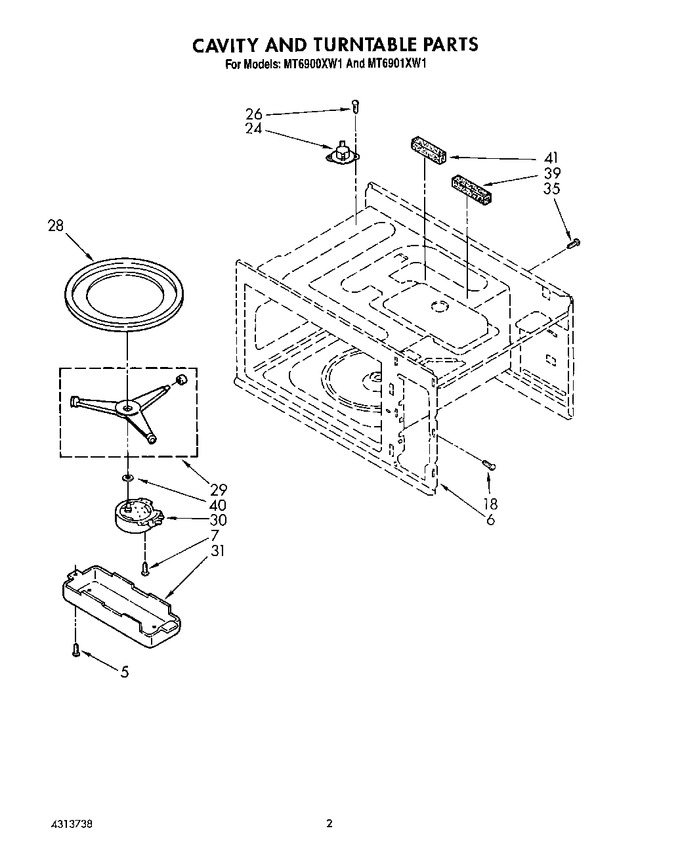

02 - Cavity And Turntable, Lit/optional
03 - Magnetron And Air Flow
04 - Cabinet
05 - Door And Latch
06 - Control Panel
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 4174811 | Screw, 4 X 8 Mm |
|
- | |||||
| 7 | 4174757 | Screw, 3 X 8 Mm |
|
- | |||||
| 18 | W11233072 | Screw, (Replaces: 4174784) |
|
Immediately | $ 12.62 | ||||
| 24 | 4313674 | Thermostat, Oven |
|
- | |||||
| 26 | 4174826 | Screw, 3 X 8 Mm |
|
- | |||||
| 28 | WP8184775 | Tray, Glass (Replaces: 4313640) |
|
$ 128.72 | |||||
| 29 | 4313639 | Support, Turntable |
|
- | |||||
| 30 | 4357340 | Motor, Turntable |
|
- | |||||
| 31 | 4365508 | Cover, Motor |
|
- | |||||
| 35 | 4313663 | Screw, 4 X 12 Mm |
|
- | |||||
| 39 | 4313641 | Seal, Moisture |
|
- | |||||
| 40 | 4313642 | Gasket, Turntable |
|
- | |||||
| 41 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 41 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 41 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 41 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 41 | 4313645 | Seal, Cavity |
|
- | |||||
| 41 | WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | |||||
| 41 | 832889 | Cord Brown (1/2 Oz.) |
|
$ 26.23 | |||||
| 41 | 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | |||||
| 41 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 41 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 41 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 41 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 41 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 41 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 41 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 41 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 41 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 41 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 41 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| LIT4313702 | Label, Menu |
|
- | ||||||
| 4386532 | Built In Kit (trim Kit) |
|
- | ||||||
| 4319161 | Built In Kit (black (mt6900xw1) (for Use Over Non Heat Source)) |
|
- | ||||||
| LIT4313738 | List, Repair Parts |
|
- | ||||||
| LIT4313733 | Tech Sheet |
|
- | ||||||
| LIT4313703 | Manual, Operation |
|
- |
