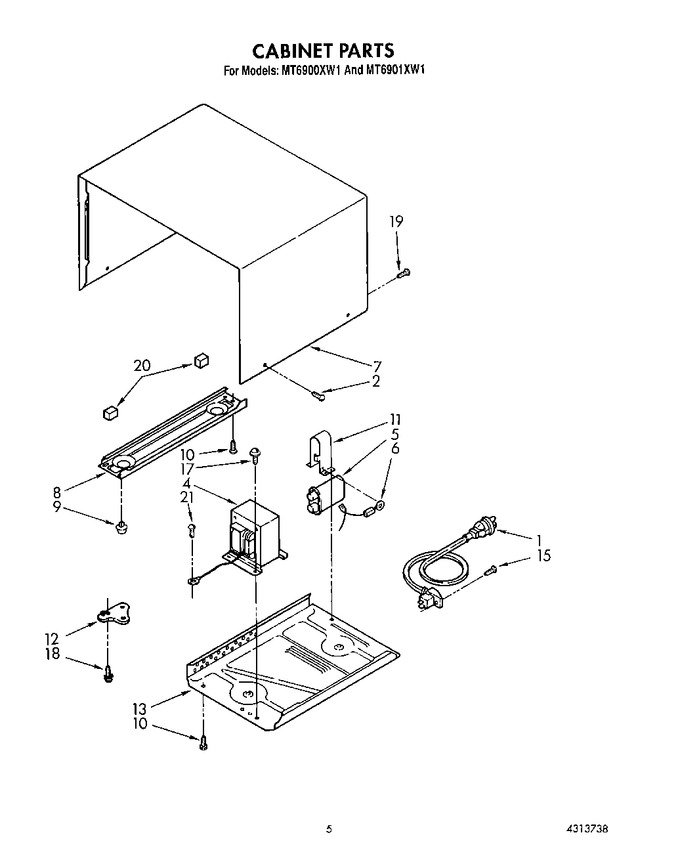

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313617		Power Cord		Appelez-nous	-
2	4313668		Screw, 4 X 12 Mm		Appelez-nous	-
4	4313615		Transformer		Appelez-nous	-
5	4313605		Capacitor		Appelez-nous	-
6	4313606		Rectifier		Appelez-nous	-
7	4313637		Outer Cabinet (white (mt6901xw1))		Appelez-nous	-
7	4313636		Outer Cabinet (black (mt6900xw1))		Appelez-nous	-
8	4313622		Base Plate, Left Side		Appelez-nous	-
9	4313684		Foot (4)		Appelez-nous	-
10	4357320		Screw, 4 X 16 Mm		Appelez-nous	-
11	4313681		Bracket, Capacitor		Appelez-nous	-
12	4313619		Hinge, Lower		Appelez-nous	-
13	4365532		Base Plate, Right Side		Appelez-nous	-
15	4313666		Screw		Appelez-nous	-
17	4365530		Screw		Appelez-nous	-
18	4313664		Screw		Appelez-nous	-
19	4313665		Screw		Appelez-nous	-
20	4313644		Shield, Wire (2)		Appelez-nous	-
21	4313661		Screw		Appelez-nous	-
