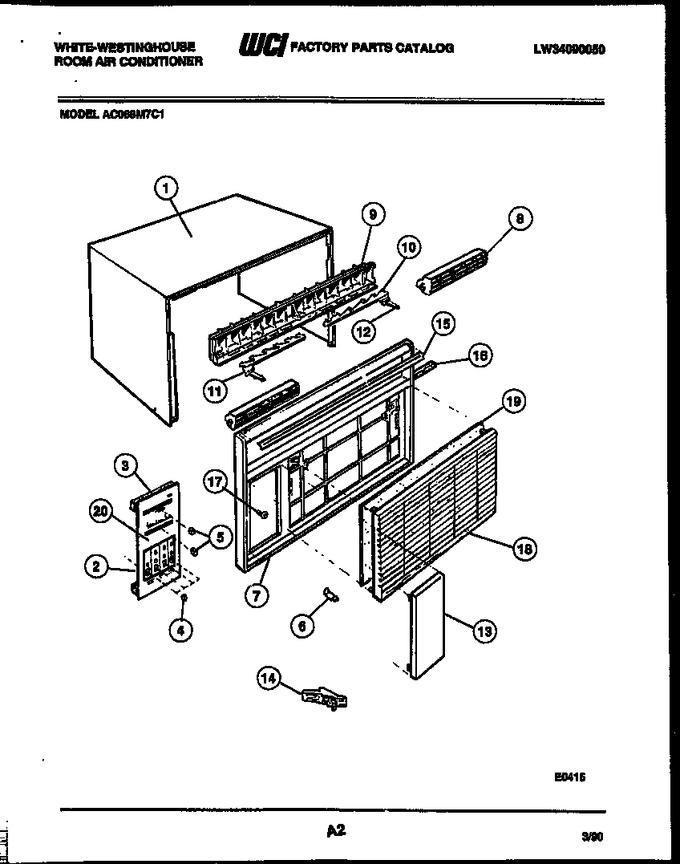

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018222 | Wrapper |
|
- | |||||
| 2 | 5303209135 | Plate-dial |
|
- | |||||
| 3 | 5308016088 | Seal Spacer |
|
- | |||||
| 4 | 5308016116 | Knob-push Button (4) |
|
- | |||||
| 5 | 5303002189 | Knob-slide |
|
- | |||||
| 6 | 5303001784 | Clip-front To Base (2) |
|
- | |||||
| 7 | 5300462602 | Front-compl. |
|
- | |||||
| 8 | 08017364 | Frame-horizontal Louver |
|
- | |||||
| 9 | 5303002457 | Vertical Louver And Link Assembly |
|
- | |||||
| 10 | 5303002160 | Link-vertical Louver Rh |
|
- | |||||
| 11 | 5303002165 | Link Vertical Louver Lh |
|
- | |||||
| 12 | 5303001844 | Clip-link Detent |
|
- | |||||
| 13 | 3201390 | Door-front |
|
- | |||||
| 14 | 5303017980 | Hinge - Door |
|
- | |||||
| 15 | A000344901 | Trim-front |
|
- | |||||
| 16 | 3016094 | Seal-mullion |
|
- | |||||
| 17 | 5308008175 | Screw-front |
|
- | |||||
| 18 | A000453903 | Panel-front |
|
- | |||||
| 19 | 5303016114 | Filter-air |
|
- | |||||
| 20 | 5308017143 | Knob-pb-filter Check |
|
- | |||||
| *28206 | 5300138101 | Nameplate |
|
- | |||||
| *28206 | 5308017124 | Bracket-frame/front |
|
- | |||||
| 19A | 3016113 | Track Filter (non-illustrated) |
|
- |
