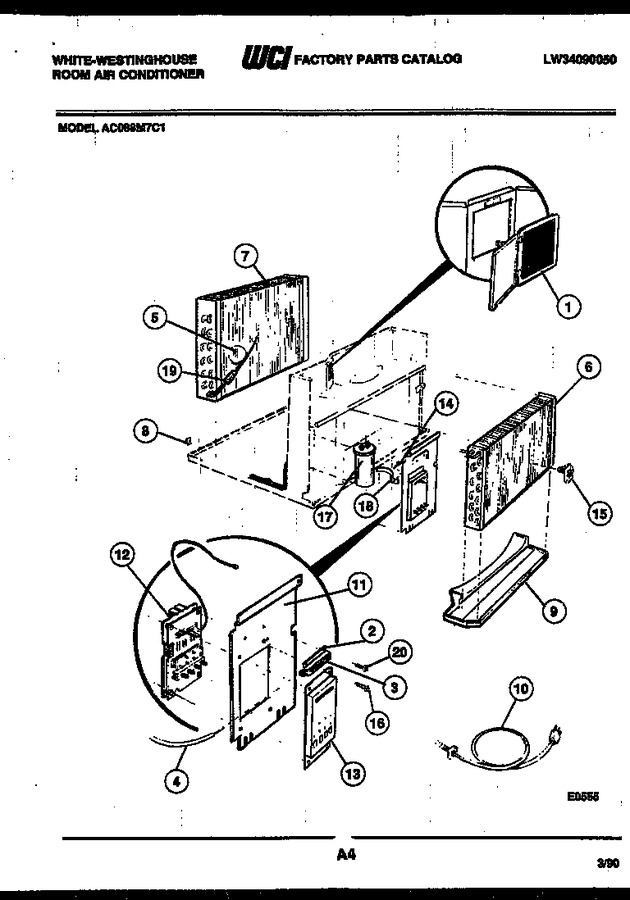

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303012455 | Vent Door |
|
- | |||||
| 2 | 5303001848 | Bracket-actuator |
|
- | |||||
| 3 | 5303002126 | Arm-actuator |
|
- | |||||
| 4 | 5303002131 | Cable-vent Door |
|
- | |||||
| 5 | 3019025 | Tube-capillary 40`` |
|
- | |||||
| 6 | 3203074 | Evaporator |
|
- | |||||
| 7 | 5303209099 | Condenser |
|
- | |||||
| 8 | 5303209136 | Clip-cond Base |
|
- | |||||
| 9 | 5308017202 | Tray-evaporator |
|
- | |||||
| 10 | 3002376 | Cord-service |
|
- | |||||
| 11 | 3016111 | Panel-control |
|
- | |||||
| 12 | 5303208876 | Control-electronic |
|
- | |||||
| 13 | 5308017139 | Cover-pc Board |
|
- | |||||
| 14 | 3016106 | Screw |
|
- | |||||
| 15 | 3204838 | Thermistor Holder |
|
- | |||||
| 16 | 08016220 | Screw (4) |
|
- | |||||
| 17 | 3202119 | Capacitor |
|
- | |||||
| 18 | 3001740 | Strap |
|
- | |||||
| 19 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 20 | 5303017342 | Screw (2) |
|
- | |||||
| *28210 | 3203207 | Grommet-drain |
|
- | |||||
| 12A | 08016086 | Housing-receptacle (non-illustrated) |
|
- |
