SELECT A DIAGRAM

01 - Cabinet

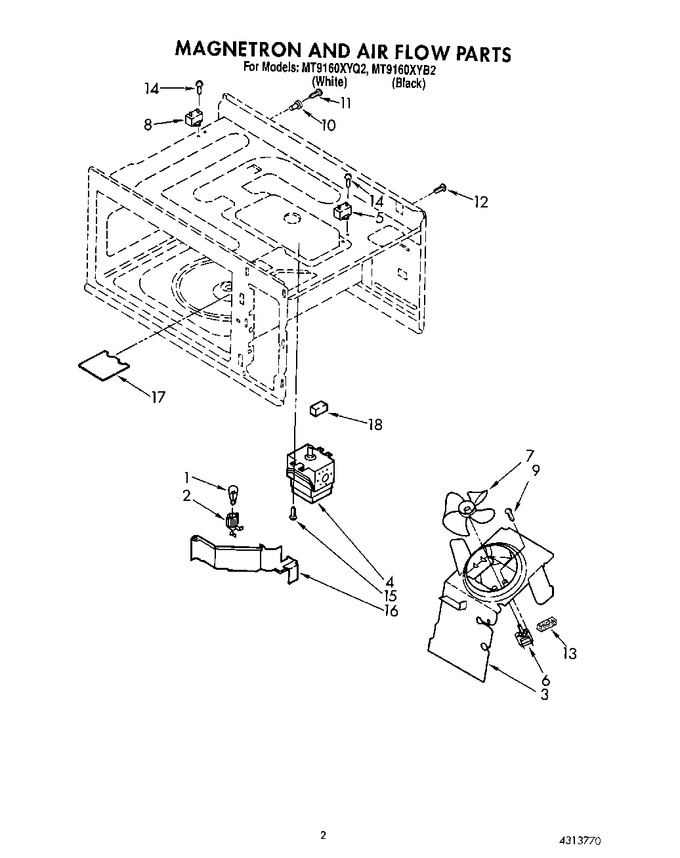

02 - Magnetron And Air Flow


03 - Door And Latch


04 - Control Panel, Wiring Harness


05 - Turn Table, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313608		Lamp, Oven		Appelez-nous	-
2	4313607		Socket, Lamp		Appelez-nous	-
3	4313686		Duct, Fan		Appelez-nous	-
4	4313675		Magnetron		Appelez-nous	-
5	4313613		Thermostat, Magnetron		Appelez-nous	-
6	4313672		Motor, Fan		Appelez-nous	-
7	4174669		Blade, Fan		Appelez-nous	-
8	4313674		Thermostat, Oven		Appelez-nous	-
9	4313701		Screw, 4 X 12 Mm		Appelez-nous	-
10	4313691		Spacer, Cavity		Appelez-nous	-
11	4357320		Screw No.4 X 12		Appelez-nous	-
12	4313663		Screw No.4 X 12mm		Appelez-nous	-
13	4174824		Cushion, Motor		Appelez-nous	-
14	4174826		Screw		Appelez-nous	-
15	4365500		Screw		Appelez-nous	-
16	4313029		Duct, Magnetron		Appelez-nous	-
17	4313687		Cover, Wave Guide		Appelez-nous	-
18	4313643		Shield, Magnetron		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
