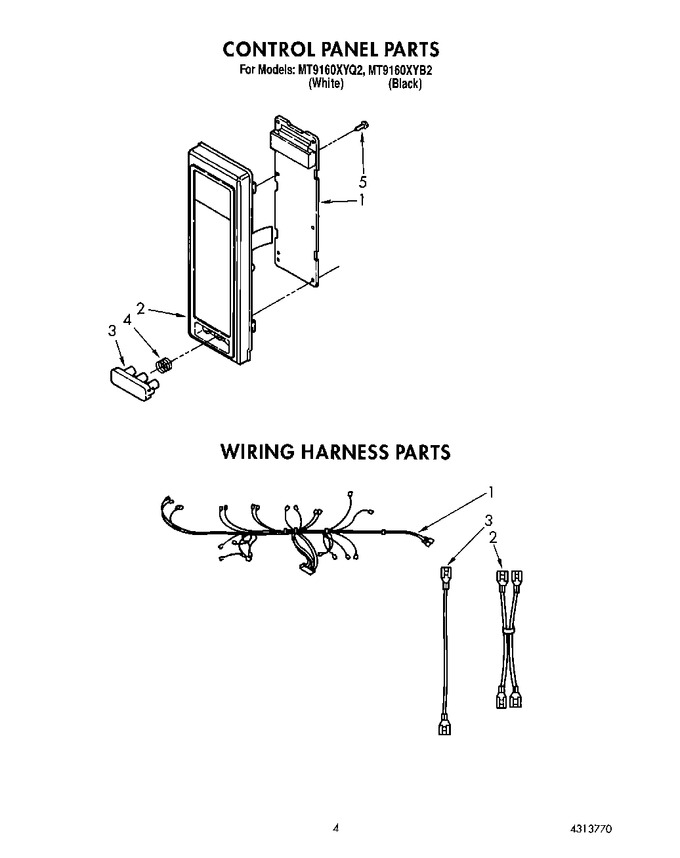

04 - Control Panel, Wiring Harness


05 - Turn Table, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4365527		Microcomputer		Appelez-nous	-
1	4365524		Harness, Main		Appelez-nous	-
2	4365523		Harness, Thermal Protection		Appelez-nous	-
2	4313694		Control Panel (white)		Appelez-nous	-
2	4313693		Control Panel (black)		Appelez-nous	-
3	4313679		H.v. Wire Transformer To Capacitor		Appelez-nous	-
3	4313695		Push Button (white)		Appelez-nous	-
3	4313696		Push Button (black)		Appelez-nous	-
4	4313631		Spring, Button		Appelez-nous	-
5	4313632		Screw		Appelez-nous	-
