02 - Cabinet

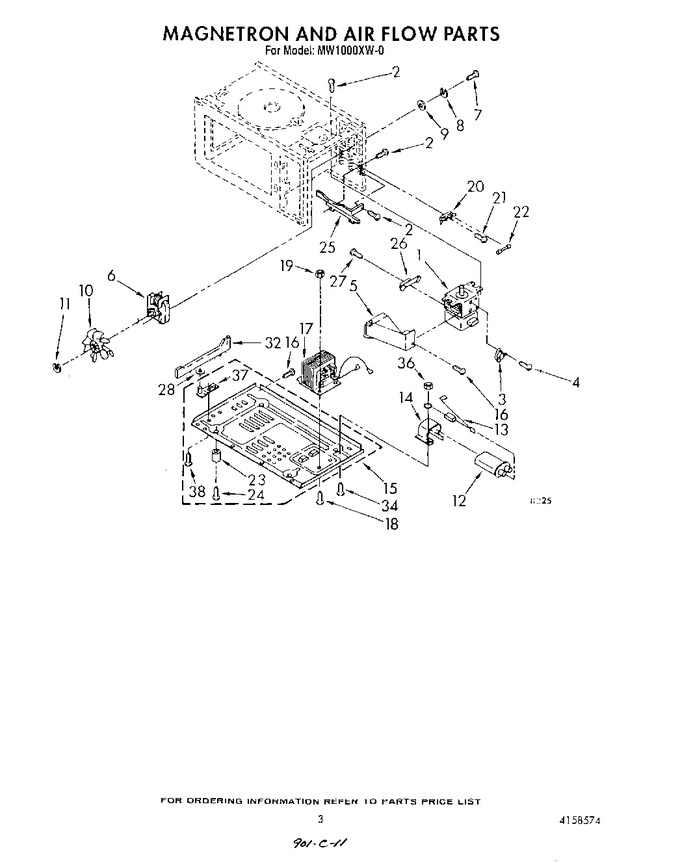

03 - Magnetron And Air Flow


04 - Oven Door And Latch


05 - Control Panel


06 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158054		Magnetron		Appelez-nous	-
2	4158075		Screw, 4 X 8 Mm		Appelez-nous	-
3	4158474		Thermal Protector		Appelez-nous	-
4	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
5	4158058		Duct, Air		Appelez-nous	-
6	4158061		Motor, Fan		Appelez-nous	-
7	4158077		Screw, 4 X 10 Mm		Appelez-nous	-
8	4158088		Washer		Appelez-nous	-
9	4158085		Washer		Appelez-nous	-
10	4158389		Fan		Appelez-nous	-
11	4158063		E-ring		Appelez-nous	-
12	4158579		Capacitor		Appelez-nous	-
13	4158298		Diode		Appelez-nous	-
14	4158043		Bracket, Capacitor		Appelez-nous	-
15	4158580		Plate, Base		Appelez-nous	-
16	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
17	4158279		Transformer		Appelez-nous	-
18	4158081		Screw, 5 X 16 Mm		Appelez-nous	-
19	4158053		Nut		Appelez-nous	-
20	4158581		Holder, Fuse		Appelez-nous	-
21	4158079		Screw, 4 X 8 Mm				$ 6.69
22	4158599		Fuse		Appelez-nous	-
23	4339375		Foot (4)		Appelez-nous	-
24	4158472		Screw, 4 X 10 Mm		Appelez-nous	-
25	4158284		Cover		Appelez-nous	-
26	4158283		Bracket, Magnetron		Appelez-nous	-
27	4158074		Screw, 4 X 6 Mm		Appelez-nous	-
28	4339331		Washer		Appelez-nous	-
32	4339328		Barrier, Base		Appelez-nous	-
34	4158194		Screw, 4 X 10 Mm		Appelez-nous	-
36	4158233		Nut		Appelez-nous	-
37	4339380		Hinge		Appelez-nous	-
38	4158192		Screw		Appelez-nous	-
