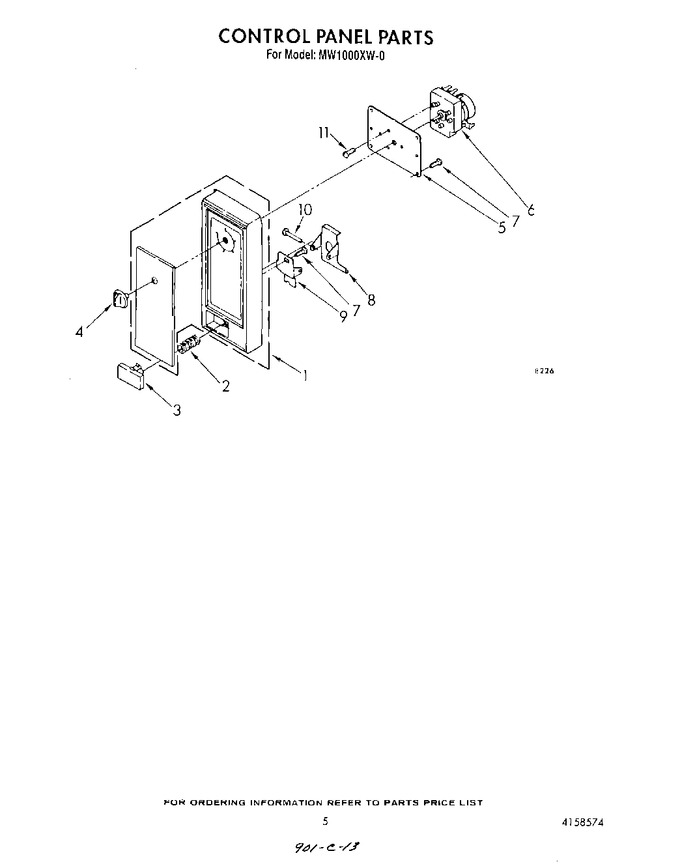

05 - Control Panel
06 - Wiring Harness , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158116 | Insert And Panel |
|
- | |||||
| 2 | 4158110 | Spring, Button |
|
- | |||||
| 3 | 4158109 | Button, Door |
|
- | |||||
| 4 | 4158114 | Knob |
|
- | |||||
| 5 | 4158115 | Bracket, Timer |
|
- | |||||
| 6 | 4158106 | Timer |
|
- | |||||
| 7 | 4158076 | Screw, 4 X 10 Mm (3) |
|
- | |||||
| 8 | 4158112 | Lever, Release |
|
- | |||||
| 9 | 4158111 | Base, Lever |
|
- | |||||
| 10 | 4158113 | Pin, Lever |
|
- | |||||
| 11 | 4158071 | Screw, 4 X 8 Mm (4) |
|
- |
